Learn how to build this DIY chalkboard kitchen tray with this step-by-step photo and video tutorial. This pretty tray should be a weekend build for you!

Hey guys, this is Susan. We wanted a chalkboard serving tray for our kitchen and we decided to make it in our home workshop.

Check out below the full step-by-step video of how we built this tray!

If you liked our video, we’d love it if you subscribe to our channel for sending you more videos made by us. Thank you!

Click here to subscribe to mellowpine_diy on YouTube

Drawing of the build

How to build the serving tray

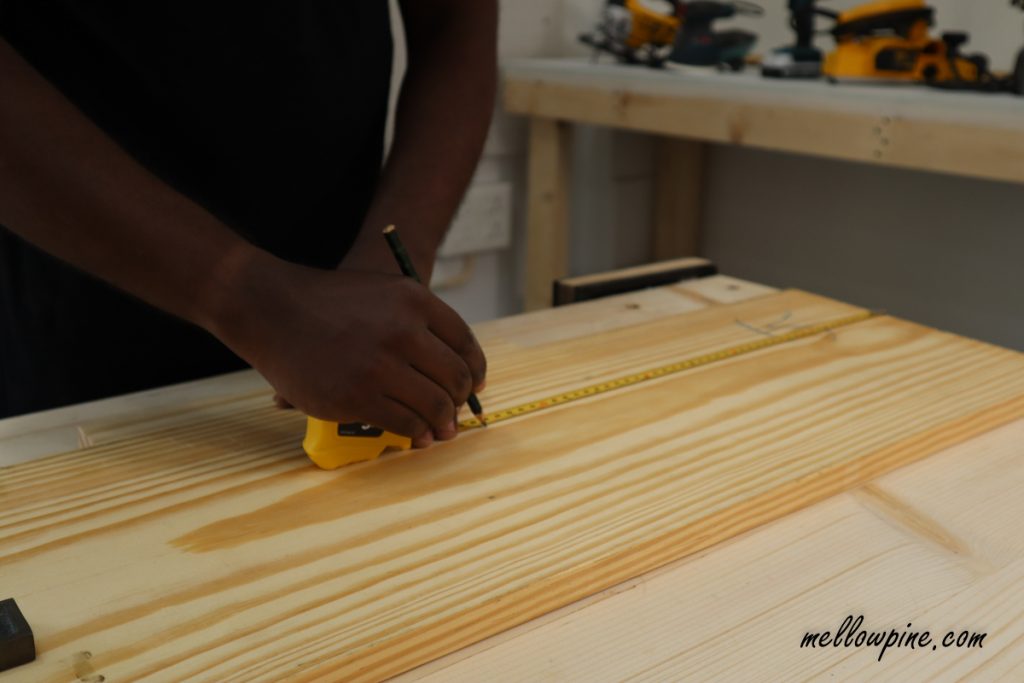

Step 1: First I took the 1/2 in x 10 in board, measured and marked it to the size (1/2 in x 10 in x 16 in) I wanted the tray to be.

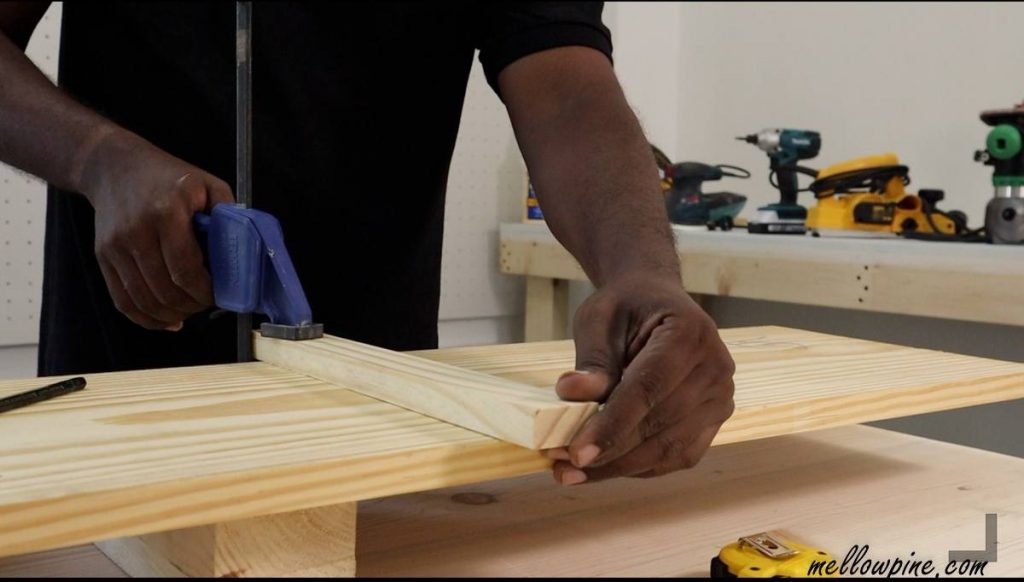

Step 2: Then we clamped a piece of wood as a fence for the circular saw and cut the board.

Step 3: Then we took the lumber for the frame(3/4 in x 1-1/2 in) and cut it down to two sizes ( 3/4 in x 1-1/2 in x 12 in and 3/4 in x 1-1/2 in x 18 in), i.e a pair of each size.

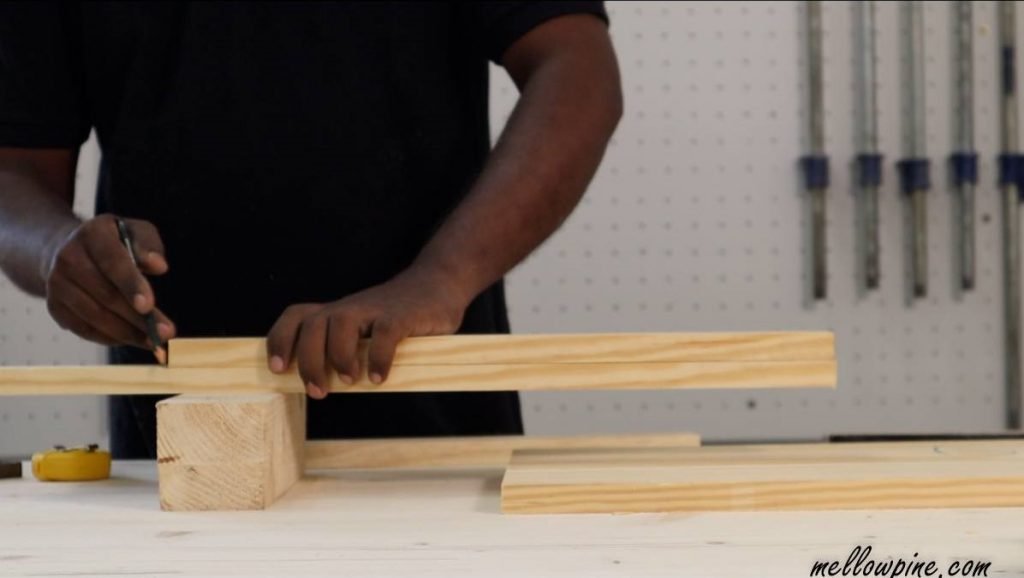

Step 4: We used the first piece as reference for cutting the other frame piece for both.

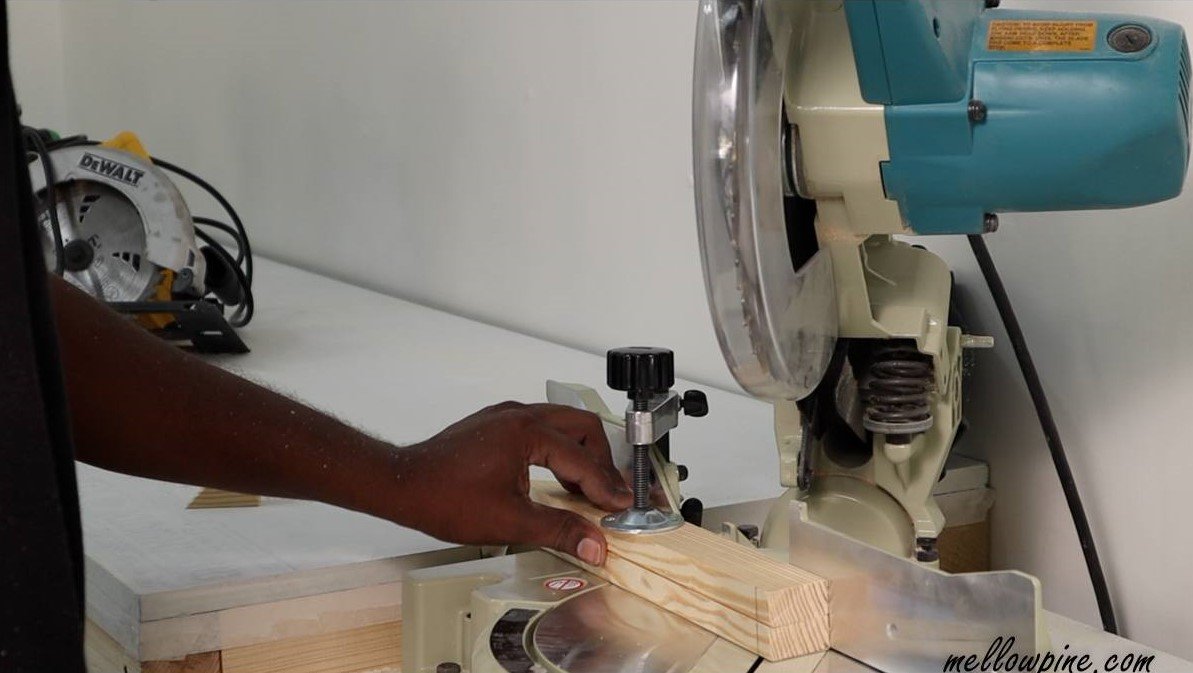

Step 5: We then used the miter saw to cut a 45 degree miter on both ends of the frame pieces.

Step 6: We then dry fitted the frame pieces to check if the miters join correctly.

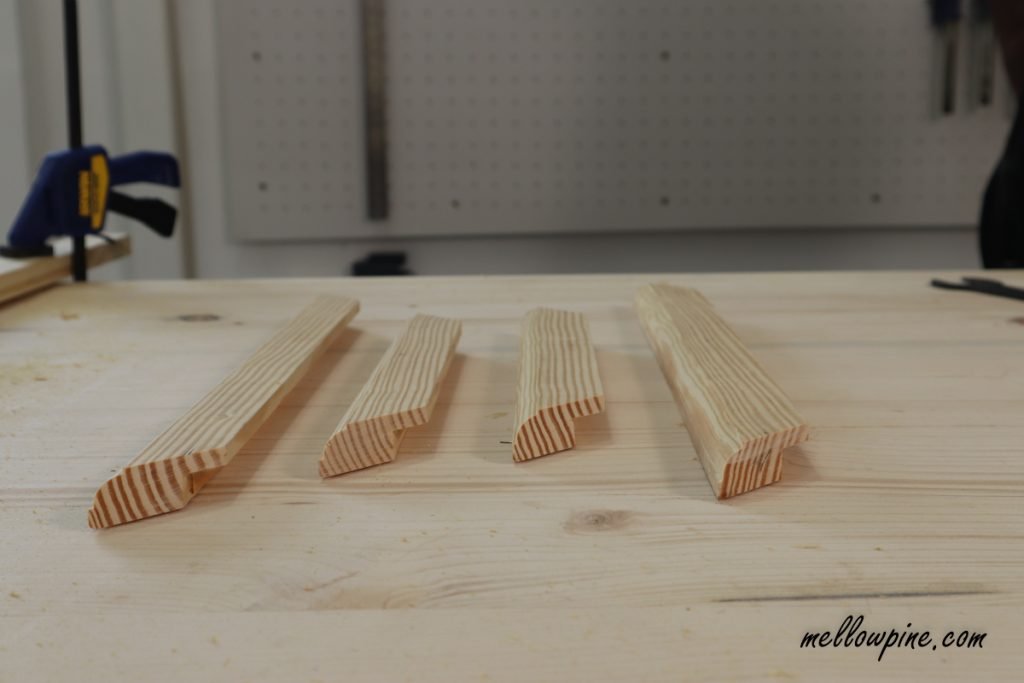

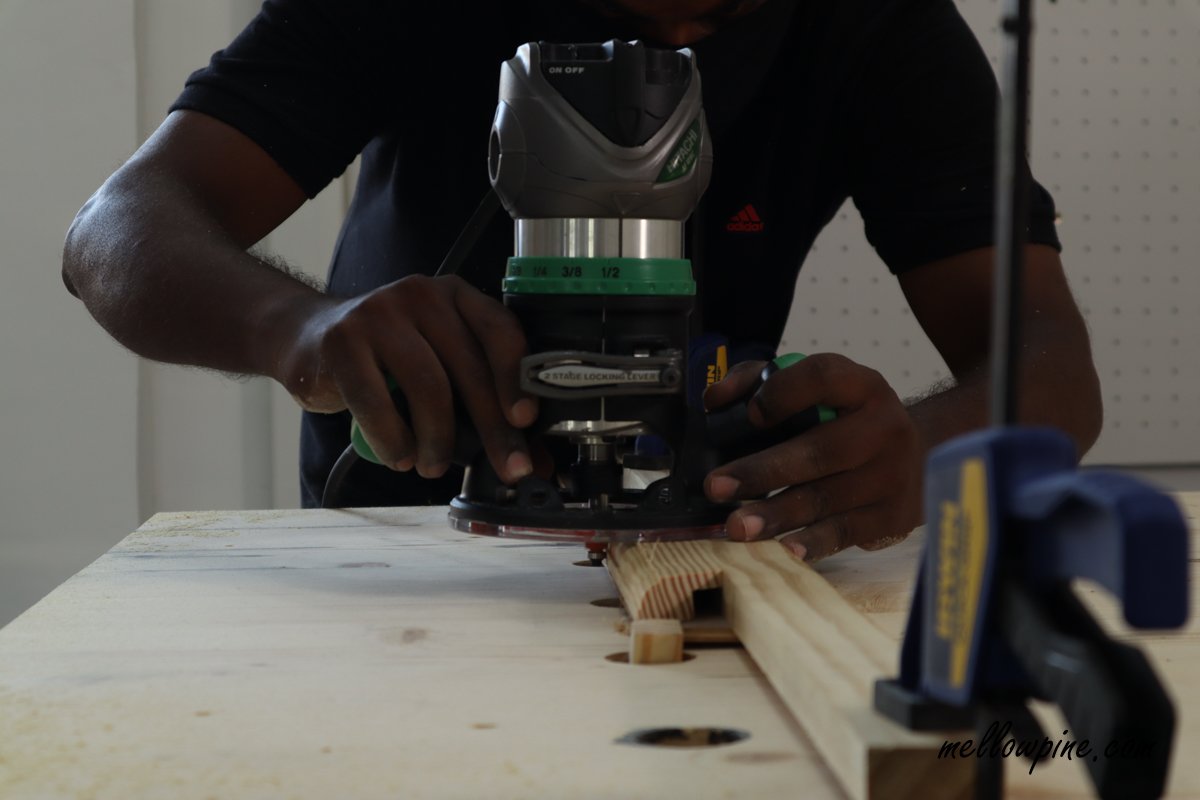

Step 7: We then routed all 4 pieces of the frame using a router to create a mortise. Then we used a roundover bit to create a rounded smooth edge for the frame. You might need to take multiple passes to get a smooth finish.

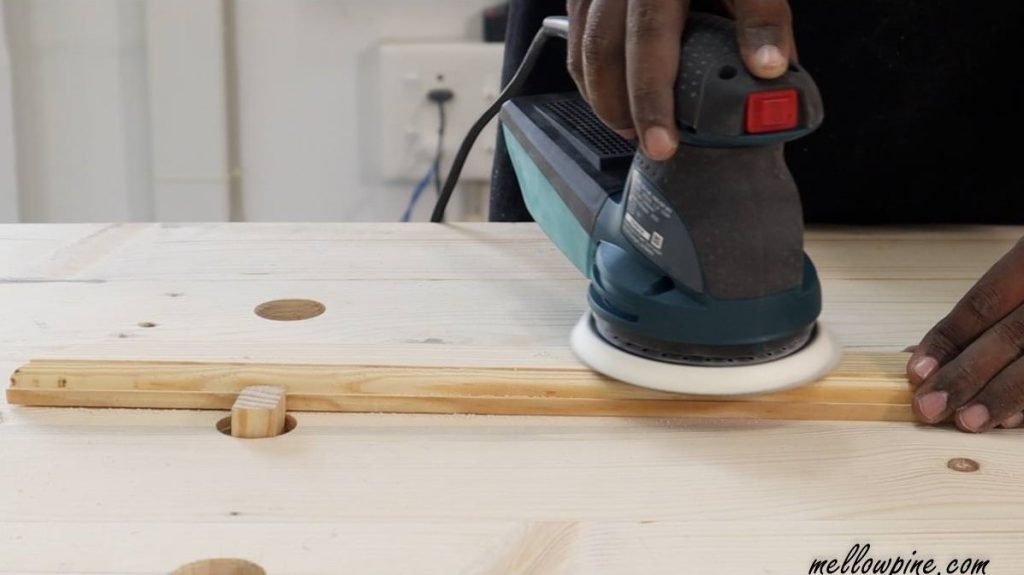

Step 8: We then started the sanding of the frame pieces with a 120 grit sandpaper.

We sanded down all sizes of the frame and then went another round with a 220 grit sandpaper for a smooth finish. In retrospect it was not necessary as it was going to be painted anyway.

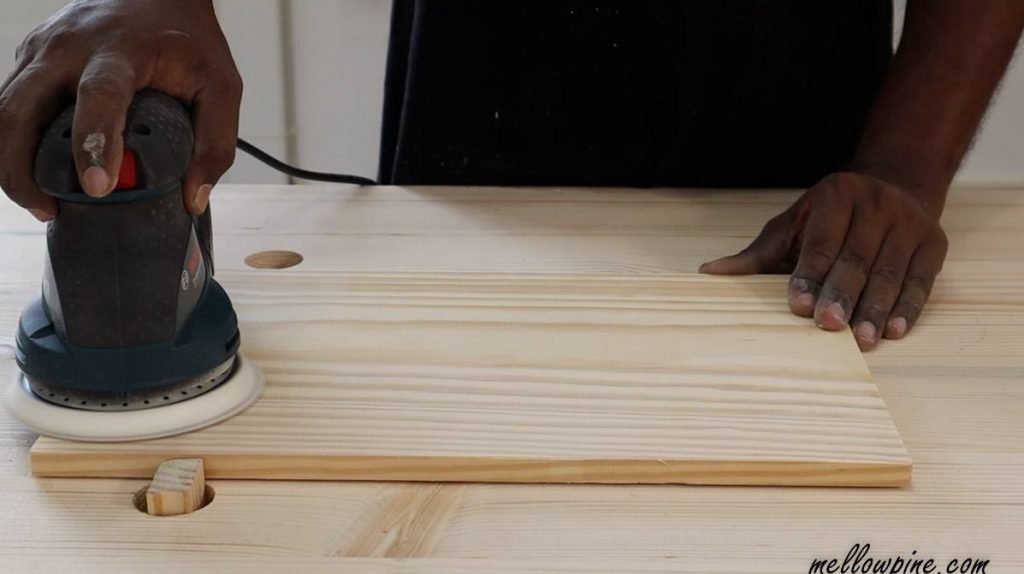

We then sanded the board piece as well in the same manner to get a smooth finish. You should aim for a really smooth finish as it is a chalkboard serving tray to be used in your kitchen.

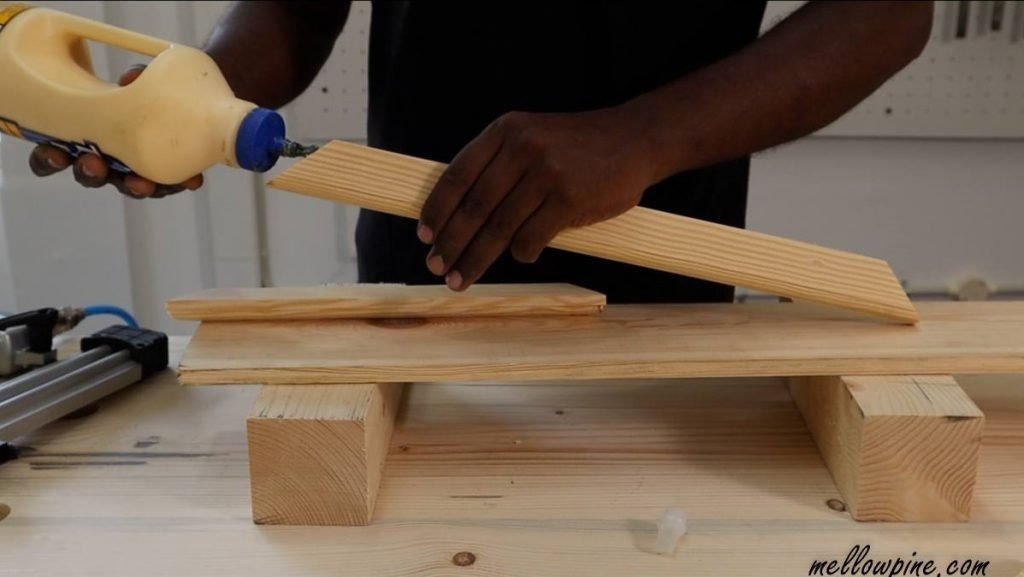

Then we went for the glue up of the frame. We applied titebond II premium glue and spread it evenly on the inside of the frame pieces.

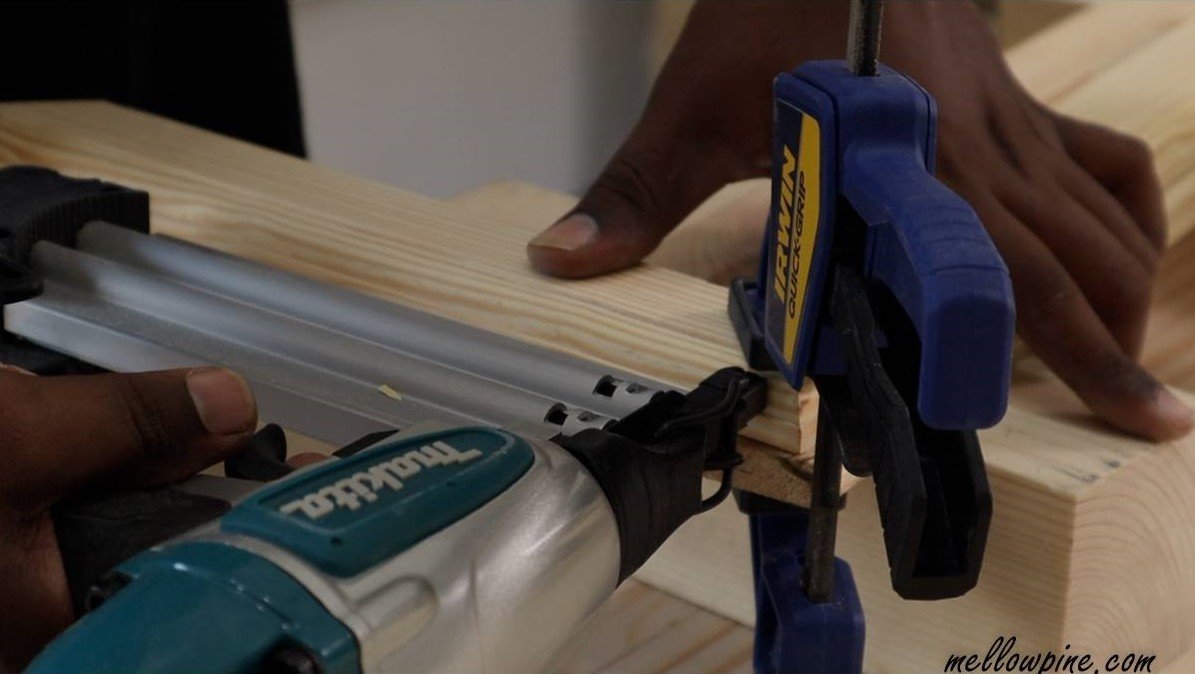

Step 9: Then we joined them and clamped it using my quick grip Irwin clamps. We used the pneumatic nail gun to put a couple of nails in the frame pieces for added pressure until the glue fully sets.

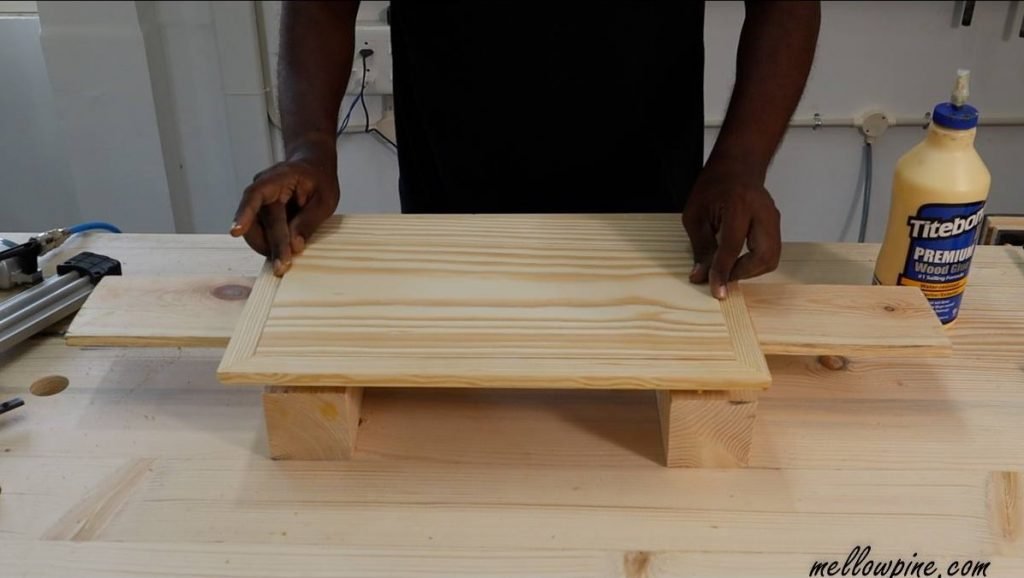

Step 10: Once I was done with the frame, I dry fitted the board piece to check fit.

Tip: if the board and the frame are not level, you can sand the entire back side of the tray using an 120 grit sandpaper to make it level before applying the finish.

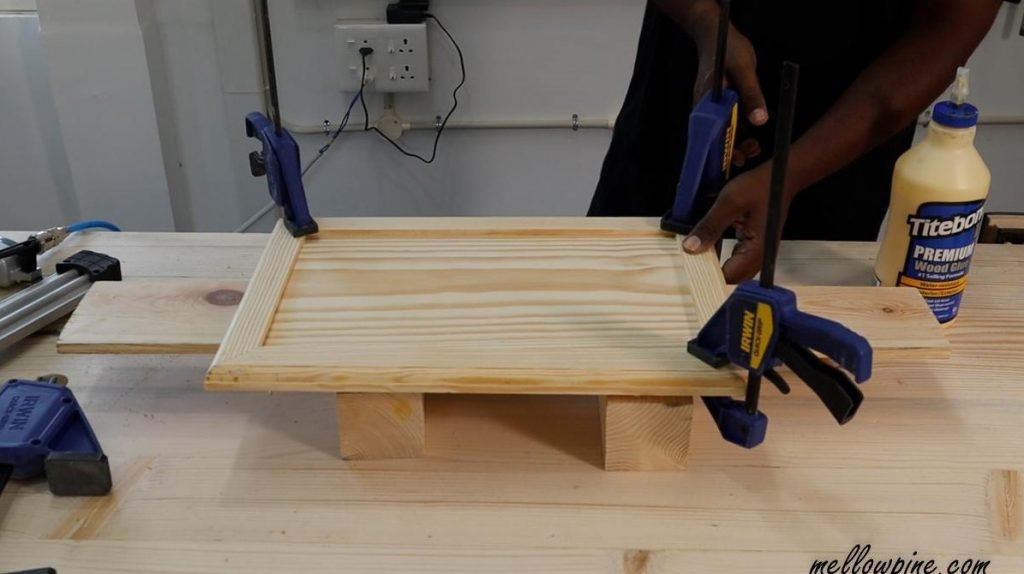

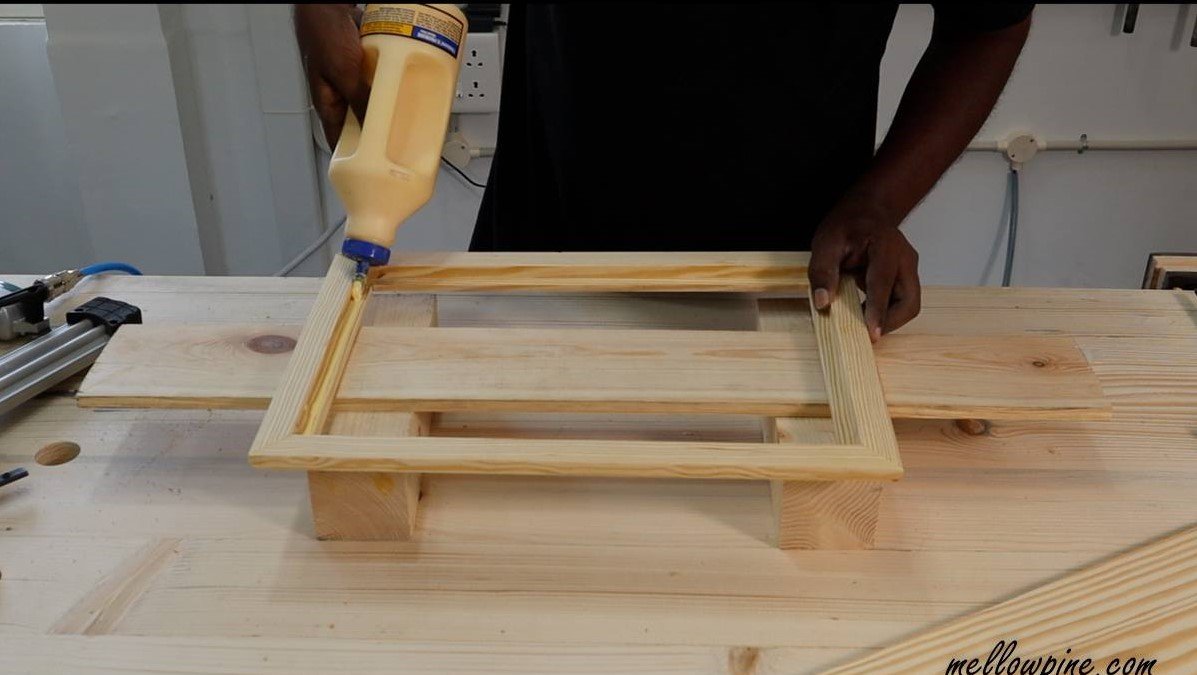

Step 11: We applied glue (titebond II) on the inside of the frame and fixed the board inside the frame.

We then used the clamps for clamping pressure until the glue fully cures.

Tip: The glue takes 1 hour for initial strength and 24 hours for full strength.

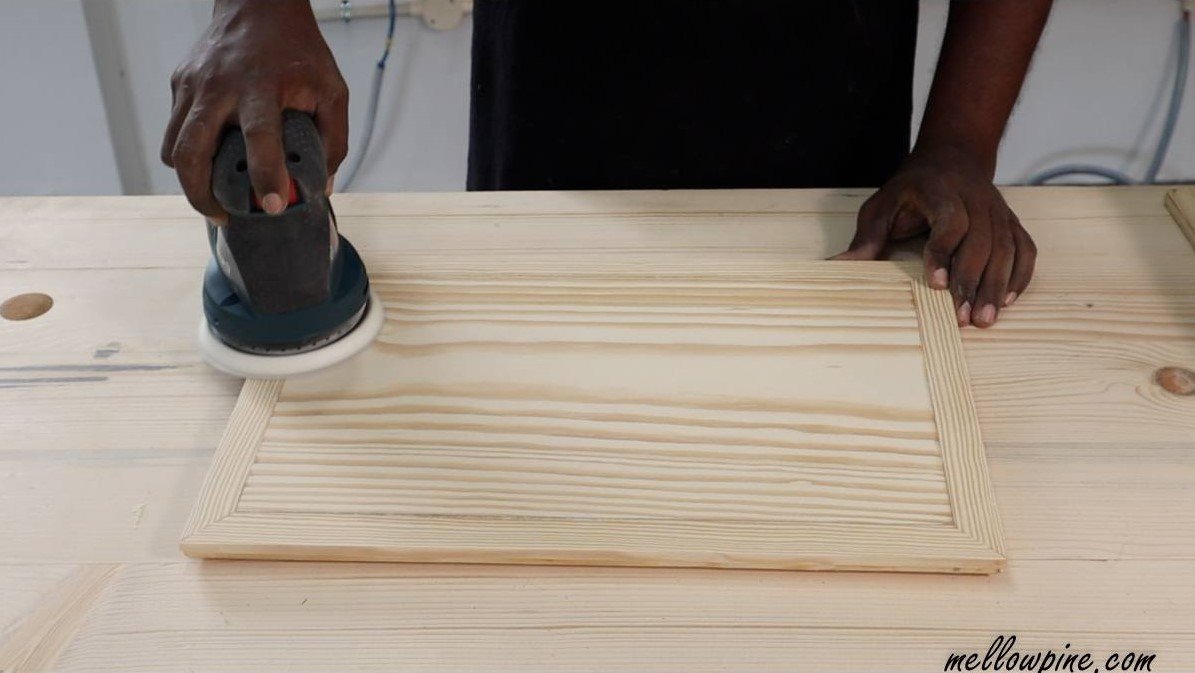

Step 12: We then sanded the entire piece once more before applying the final finish. After sanding we used a wet cloth to wipe off the dust.

Tip: it’s best to use a tack cloth to do this. Since we didn’t have one at hand we used a wet rag.

Step 13: After this we went for the painting. We spread a sheet of plastic on my work table to prevent spills and paint marks.

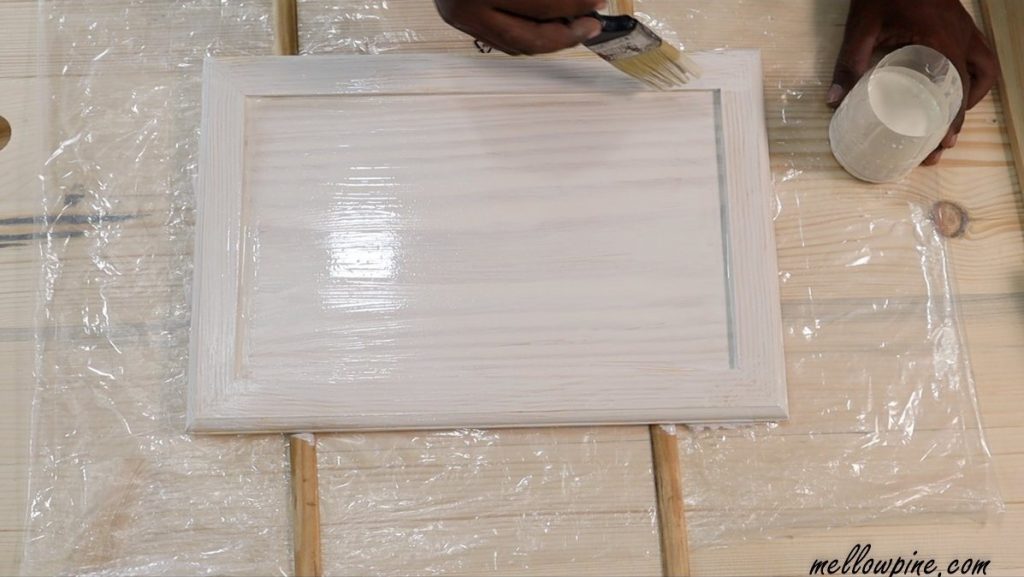

At this point, we were in half a mind to leave it as it is because we liked the grain pattern, but we finally decided to paint it anyway. We applied wood primer on the entire board to prime the wood before painting.

Step 14: After one side was done and dried, we applied the same thing on the back side of the board.

After the first coat dried, we used a sanding sponge to lightly the sand the piece to remove minor imperfections.

After this we applied two more coats of primer giving a 6-8 hour drying time between each coat. This could take longer if the weather is cold.

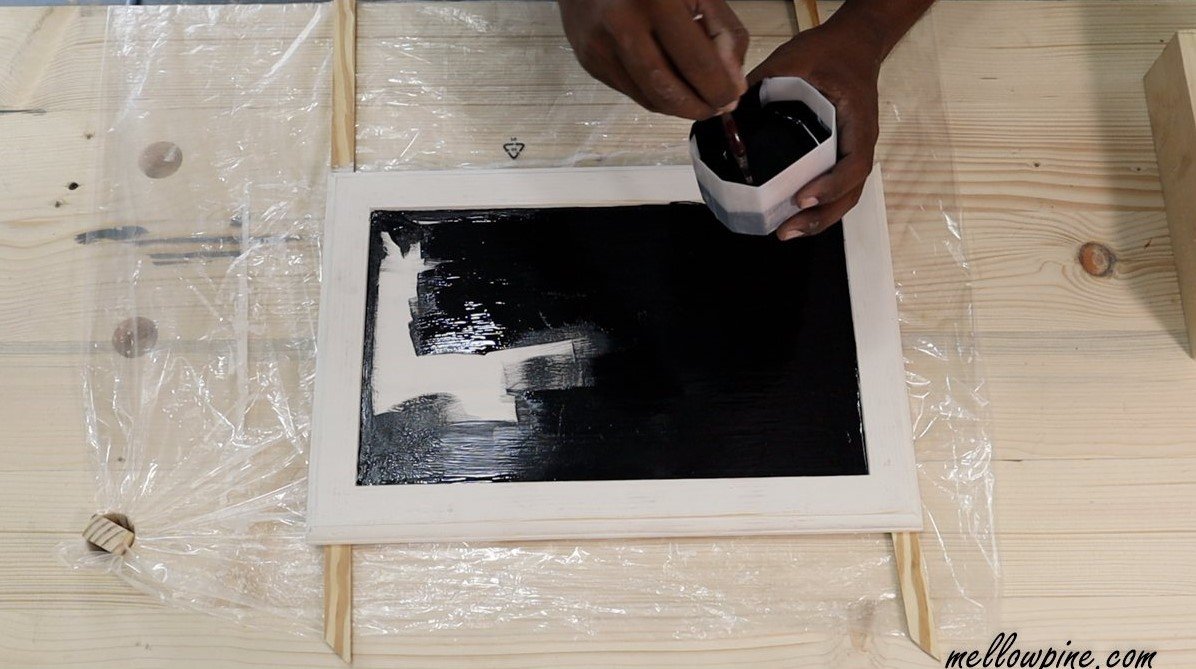

Step 15: After this I applied the chalkboard paint on the inside of the tray.

You can also use spray paint if you are comfortable with it. Using a brush brings in the hassle of having to clean it afterward with mineral spirits.

Then I applied one coat of white paint on the frame.

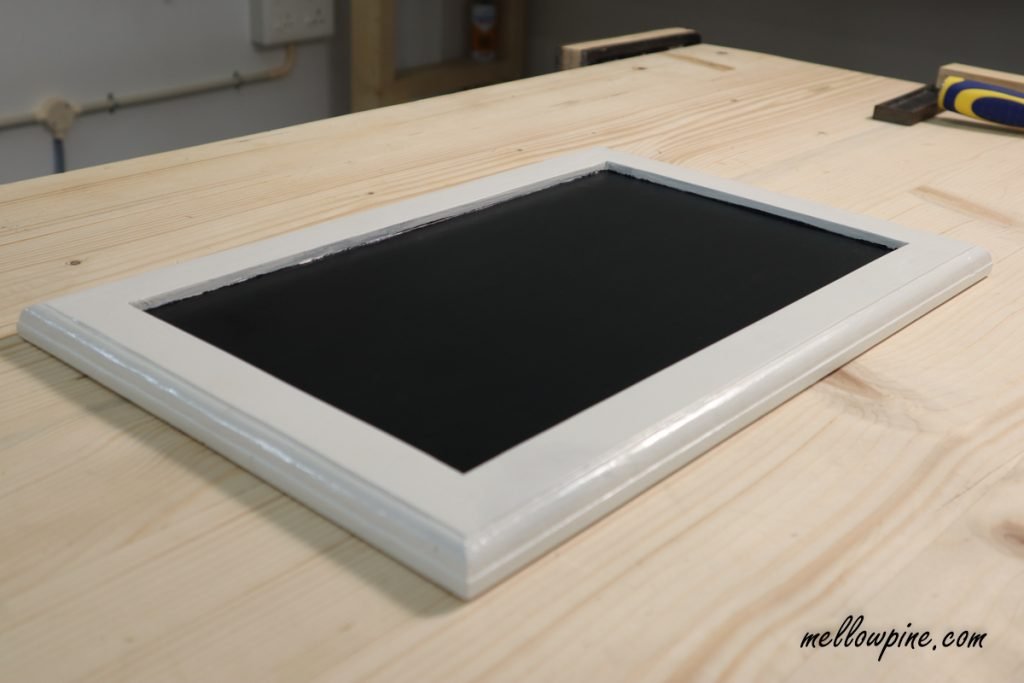

Step 16: Finally, I applied one more coat of chalkboard paint and white latex paint to finish the painting part of the project.

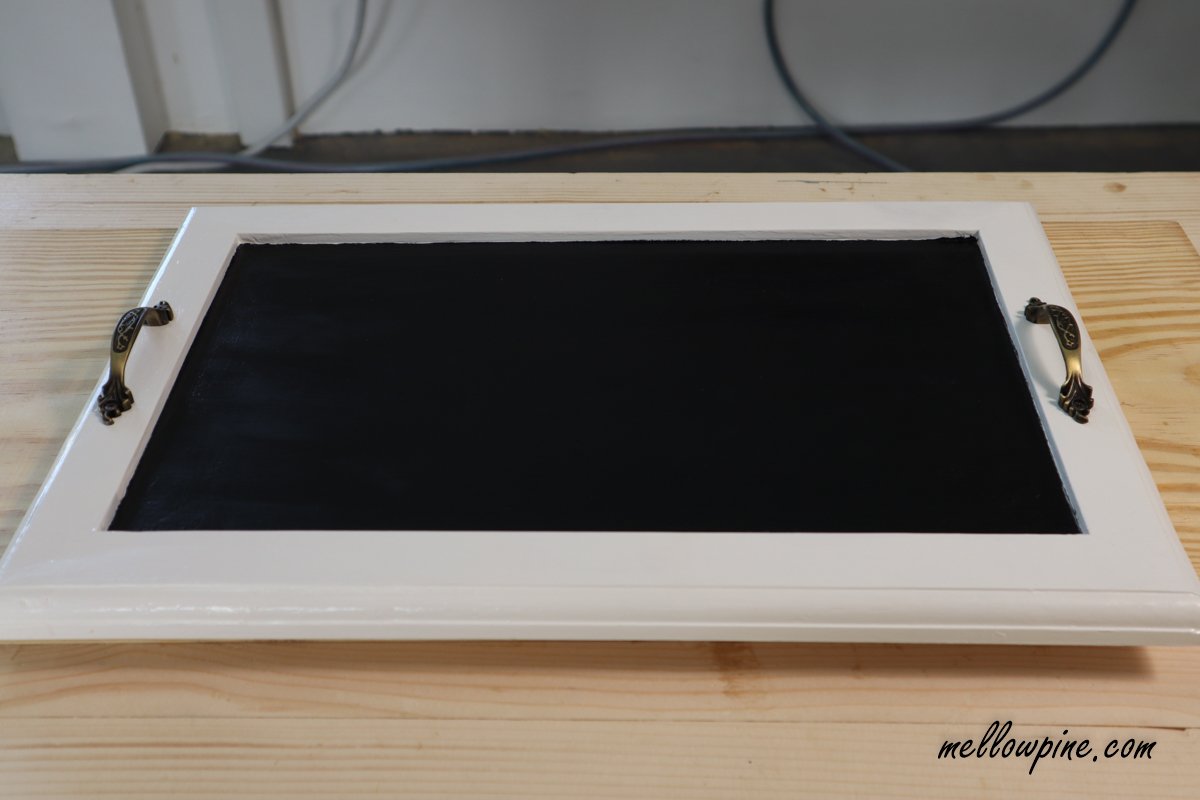

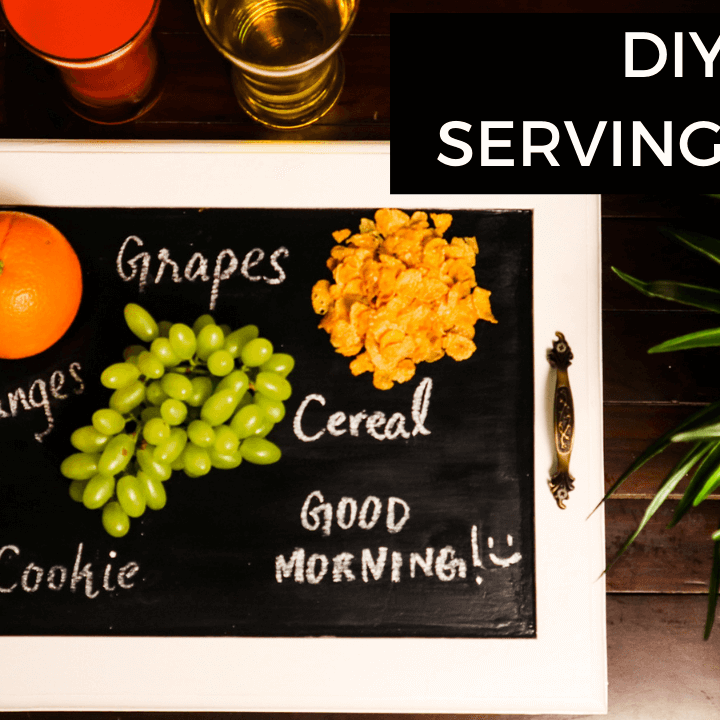

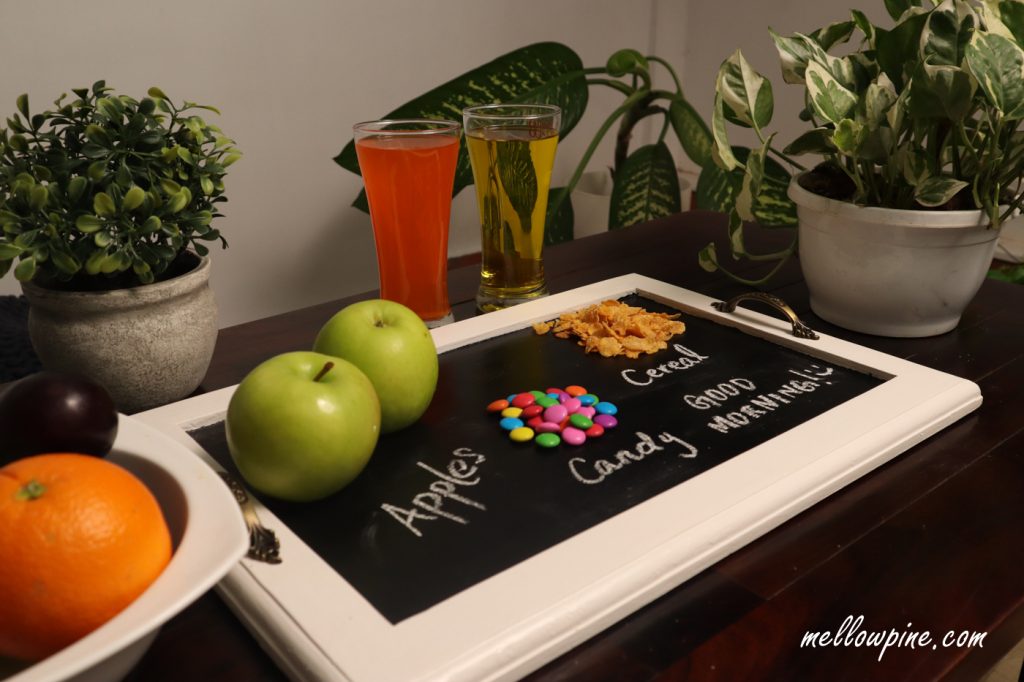

Step 17: Lastly, I fixed a couple of cute cabinet pulls and voila you have your chalkboard serving tray for your kitchen!

If you liked this post, please pin this photo below to your DIY/Home Decor/Kitchen DIY/Woodworking pinterest board.

Chalkboard serving tray DIY

Active Time: 2 hours

Prep Time: 30 minutes

Additional Time: 10 hours

Total Time: 12 hours 30 minutes

Difficulty: Medium

Estimated Cost: 25 dollars

This is a tutorial for making a DIY chalkboard serving tray using scrap wood lying around in your house.

Print

Materials

• 1/2 in by 10 in board
• 3/4 in by 1-1/2 in lumber
• Wood Glue
• Cabinet Pulls
• Wood Primer
• Chalkboard Paint
• 1 inch Brad Nails
• Sandpaper

Tools

• Circular Saw
• Miter Saw
• Router
• Nail Gun
• Paint Brush
• Clamps

Instructions

1. Cut the board to the right size for the tray
2. Cut the frame pieces using circular saw or miter saw
3. Miter the edges of the frame pieces
4. After checking for dry-fit, route the mortise and round the edges using a router
5. Sand the frame pieces and the board
6. Glue the frame pieces together and use brad nails for added strength
7. Glue the board on the inside of the frame
8. After the glue cures,sand the entire tray down
9. paint the board using a wood primer and then paint the frame pieces white and the center part with black matte chalkboard paint.
10. Fix cabinet pulls for the handles
