Maybe you're planning on upgrading your existing CNC spindle or you're building a new CNC router from scratch and you need a good spindle.

In this guide, I list the best CNC spindles available on the market in 2022.

The best CNC spindle for your application will depend upon the hardness of the materials you intend to process and the speed with which you need to get it done.

If you don't have the time or patience to manually change tools, you can choose an Automatic Tool Changer (ATC) spindle but they are expensive compared to regular spindles.

The factors I considered while compiling this list are the power output, the build quality of the spindle, collet size, and the cooling system.

I have sorted them based on their power output, starting with low-power spindles and progressively moving up to a 4 kW spindle.

Depending on their RPM and rigidity, some of these can be used for metal milling while others are suitable for softer materials.

At the end of this article, I have talked about the factors to consider while selecting a spindle for your CNC.

MellowPine is reader-supported. When you buy through links on my site, I may earn an affiliate commission at no extra cost to you.

Here are the best CNC Spindles available on the market in 2022:

CNC SpindlePower
1Genmitsu GS-775M-
2Daedalus CNC Brushless Spindle Motor0.5 kW
3Huanyang Water Cooled CNC Spindle0.8 kW
4RATTMMOTOR Water-Cooled Spindle Kit1.5 kW
5MYSWEETY CNC Spindle Motor Kit2.2 kW
6Mophorn Spindle Motor ER20 Air Cooled4 kW

Best CNC Spindles [2022]

If you are confused by the choices, you can learn how to choose a CNC spindle first.

Best CNC Spindles for your CNC Router (in increasing order of Power)

1. Genmitsu GS-775M - Best CNC Spindle for Engraving

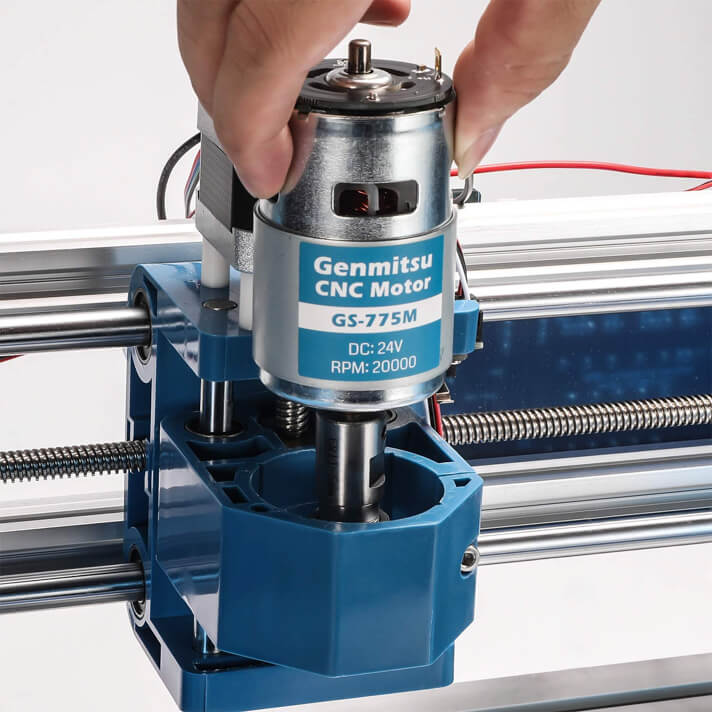

Genmitsu GS-775M CNC Spindle
Genmitsu GS-775M CNC Spindle
Diameter, Length1.7" (43mm), 3.54" (90mm)
Maximum RPM20,000
ColletER11
Tool shaft diameter0.02" - 0.276" (0.5 - 7 mm)
CoolingAir-cooled

Quick summary of Genmitsu GS 775M Spindle Motor

A spindle for low-power, high-speed applications is what the Genmitsu GS-775M can be.

The spindle weighs less than 1 lb, with a rigid body made of steel, and is air-cooled.

The diameter of this spindle is 1.7" and can be mounted using a clamp mount.

It is compatible with ER11 collets that can hold tools with 0.276" inches of shaft diameter.

ER collets can be adjusted within a range. Make sure your spindle and ER collet sizes are compatible.

This spindle is best suited for engraving on soft materials and aluminum.

The spindle doesn't come with a collet, so if you don't have one, you'll have to purchase the ER11 collet holder separately.

Genmitsu sells a compatible ER11 collet for this motor here- Genmitsu ER11 Collet Holder for GS 775M motor.

It can run at a maximum RPM of 20,000, which means the tool can cut fast, translating to a faster cycle time.

This motor is quieter than most other motors of similar speed and price, but you should expect a tiny bit of vibration.

The Genmitsu GS-775 was created as an upgrade for the 10,000 RPM motor on the Genmitsu 3018 CNC router.

However, it can fit any CNC router with a 775 motor frame.

The wires in this spindle need to be connected using spade connectors or by soldering.

Reversing the wires while connecting can cause the spindle to run in the opposite direction.

Genmitsu GS-775M 24V 20000 RPM 775 Motor
With a maximum RPM of 20,000 and a highly affordable price, this spindle is ideal for engraving with 3018 CNC routers.

2. Daedalus CNC Spindle (0.5 kW)

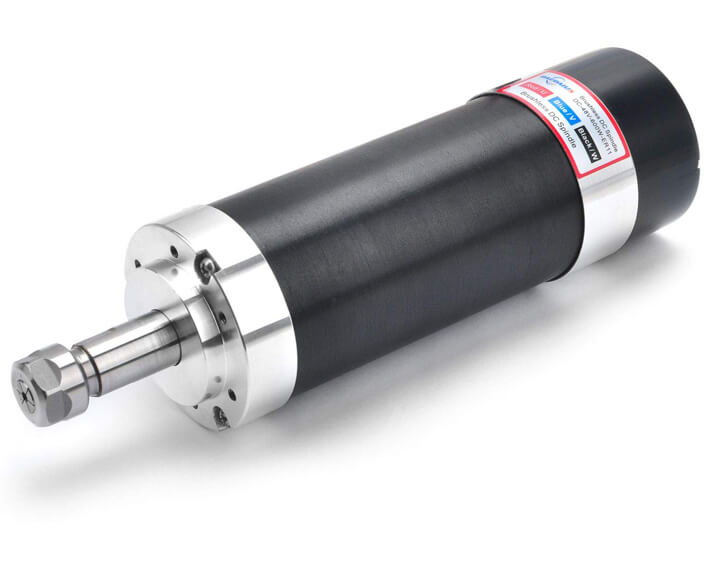

Daedalus CNC Brushless Spindle Motor
Daedalus CNC Brushless Spindle Motor
Diameter, Length2.16" (55mm), 7.55" (192mm)
Maximum RPM12,000
Power0.5 kW
ColletER16
Tool shaft diameter0.02" - 0.354" (0.5 - 9 mm)
CoolingAir-cooled

Quick summary of Daedalus CNC Brushless Spindle Motor 500W ER16

The Daedalus CNC spindle motor is suitable for small CNCs and can carve on aluminum and soft materials.

I chose the ER16 variant for this article.

The size of the collet determines the type of tool you can use, so consider the tools you intend to use and choose a collet accordingly.

For mounting the spindle, you will have to provide a 2.16" diameter clamp.

The ER16 collet provided can accommodate tools with shaft diameter between 0.02" - 0.354", and the ER11 collet can hold tools with a 0.45” shaft diameter.

They also have 400W and 600W models with an ER11 collet.

This spindle has a tested runout of 0.0004 - 0.0008 inches.

Runout is the amount of deviation of the tool from the central axis of the spindle.

Daedalus spindle can spool up to 12,000 RPM at 48 V with a rated power of 500W and gives you good cutting speeds and feed rates.

It is a brushless spindle, and therefore the problems associated with brush wear are eliminated. In addition, the motor is quiet due to lack of brush.

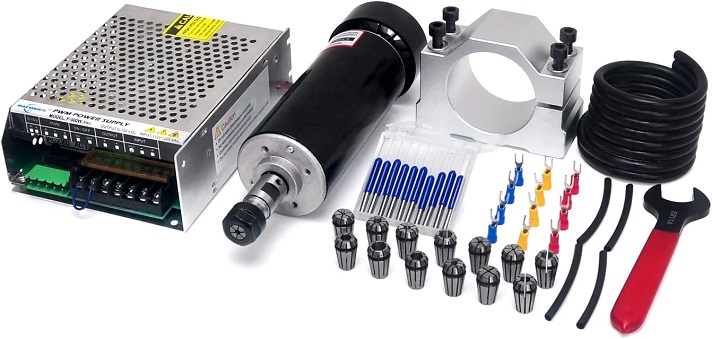

You can also buy the CNC spindle kit, which contains the spindle motor, motor driver, power supply unit, LCD speed display, 10 V-bit cutters, 11-ER16 collets, and a 2.16” clamp from Amazon.

3. Huanyang Spindle (0.8 kW)-Best Water Cooled Spindle

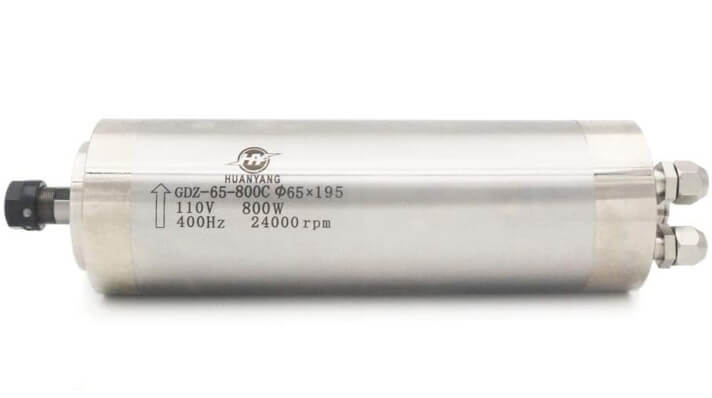

Huanyang Water Cooled 800W 24000RPM  CNC Spindle
Huanyang Water Cooled CNC Spindle 800W 24000RPM
Diameter, Length2.55" (65mm), 8.97" (228mm)
Maximum RPM24,000
Power0.8 kW
ColletER11
Tool shaft diameter0.02" - 0.276" (0.5 - 7 mm)
CoolingWater-cooled

Quick summary of Huanyang Water Cooled CNC Spindle 800W 24000RPM

If you want long hours of operation for your projects, the Huanyang Water Cooled CNC spindle is a great choice.

It weighs around 7 lbs and can be mounted on most CNC systems which can support 2.55” diameter spindles.

The collet provided is ER 11 with a tested runout of 0.0004,” meaning you get good accuracy.

Huanyang 0.8 kW spindle is available on amazon and is best suited for carving wood and engraving on metals and acrylics.

The minimum stable operating speed you can achieve is 6,000 RPM and can be spooled up to a speed of 24,000 RPM, letting you perform a wide range of operations.

When you run your spindle at high speeds for long durations, it can heat up quite quickly.

In water-cooled spindles like this, the heat is taken away by pumping water into it.

This means you’ll have to provide a water line for the spindle to work.

Water cooling is better than air cooling when there is dust involved.

Air cooling blows air over the spindle and this can kick up dust. You won’t have such a problem with water-cooled spindles.

Huanyang spindle follows a 4-bearing design which makes it quite stable with low vibration.

You will need to hook it up to a 110V - 400 Hz VFD (Variable Frequency Drive) to operate it, and it has a rated current of 7.2 A.

It is a four-wire motor, with three wires for the 3 phases and one for earth.

The wiring is simple as it comes with an aviation plug, meaning you only have to plug in the connector and don’t have to solder or crimp any wires.

In addition, aviation plugs provide good shielding from dust and liquid entering the terminal.

Huanyang Water Cooled Spindle 110V 0.8kW 24000RPM 400hz Φ65mm ER11 Collet
0.8 kW water cooled spindle motor with ER11 collet. To be used with 110V 400hz VFD

If you are looking for the whole setup to run your spindle, then a spindle kit might be a better choice.

Huanyang sells a 1.5 KW VFD Spindle kit that comes with a 2 hp spindle, 80 mm clamp mount, an ER11 collet, a 75 W water pump, VFD controller, and 5mm thick tubing for connecting the water pump.

4. RATTMMOTOR Spindle Kit (1.5 kW)

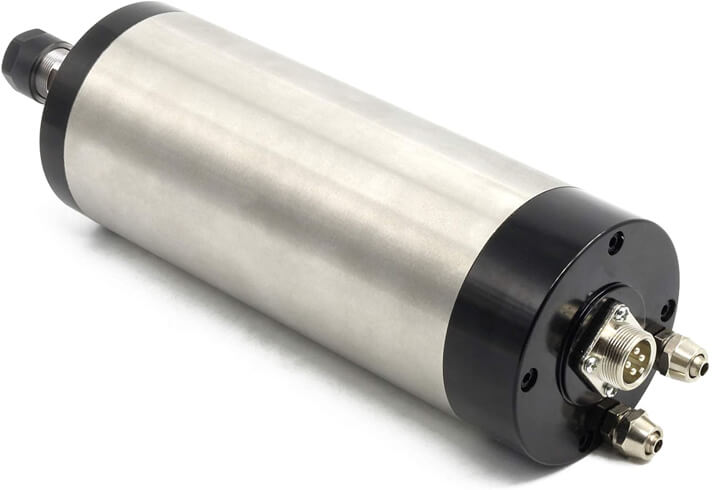

RATTMMOTOR Water-Cooled 1.5KW ER16 CNC Spindle
RATTMMOTOR water cooled 1.5KW ER16 CNC Spindle
Diameter3.14" (80mm), 9.29" (236mm)
Maximum RPM24,000
Power1.5 kW
ColletER16
Tool shaft diameter0.02" - 0.354" (0.5 - 9 mm)
CoolingWater-cooled

Quick summary of RATTMMotor 1.5KW ER16 spindle

A balance between quality and power is what you get with the RATTMMotor 1.5KW ER16 spindle kit.

The spindle has a diameter of 3.14" and can be mounted on to your CNC router using the clamp provided in the kit.

This spindle kit has a 1.5 KW ER16 Spindle, a 80mm clamp, and a 220V VFD.

You can ramp up the speed of this motor up to 24,000 RPM at a power of 1.5 KW using a 220 V supply.

Note that this spindle can only rotate in the clockwise direction.

The speed can be varied using the VFD provided in the kit.

However, the lowest stable speed you can achieve using this kit is 9,000 RPM. You can use a different VFD to take the speed to lower ranges.

The spindle has a preinstalled ER16 collet and can hold tools in the range of 0.02" - 0.354" (0.5 - 9 mm) with a runout of 0.002".

It is a water-cooled spindle made out of stainless steel. The pump and pipes for cooling are included in the kit. This spindle is suitable for engraving and cutting wood, aluminum stone and other soft materials.

The kit includes the spindle, a 220V 400Hz VFD drive, a 220V 80W water pump, 16 foot pipe, and can be bought from amazon.

RATTMMotor 1.5 kW ER16 VFD Spindle kit
1.5 kW water cooled spindle with maximum RPM of 24,000. Comes with ER16 collet and fits 80mm spindle mount.

5. MYSWEETY Spindle Motor Kit (2.2 kW)

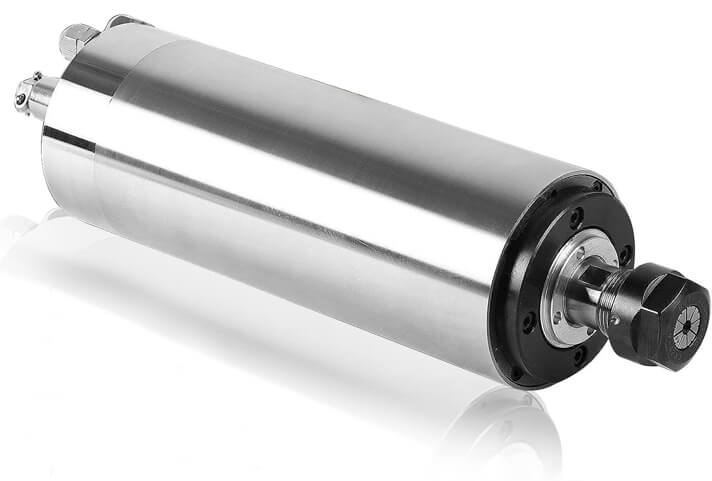

MYSWEETY 2.2 KW CNC Spindle
MYSWEETY CNC Spindle Motor - 2.2KW
Diameter3.14" (80mm)
Maximum RPM24,000
Power2.2 kW
ColletER20
Tool shaft diameter0.039" - 0.512" (1 - 13 mm)
CoolingWater-cooled

Quick summary of MYSWEETY CNC Spindle Motor - 2.2KW

A complete CNC spindle kit for your new CNC build that can cut a variety of materials is what you get with the MYSWEETY CNC spindle motor kit.

The spindle weighs 11 lbs, and the entire kit weighs around 22 lbs.

The kit contains the spindle motor, the VFD, a water pump, 16-foot water pipes, a 2.75” dust cover brush, 13 ER20 collets and 10 Drill bits.

You can also buy the spindle without the kit by contacting the seller through email.

MYSWEETY spindle can be mounted on any frame that can accommodate a spindle diameter of 3.14”.

The kit comes with ER20 collets and has a tested runout of 0.0002”, which is a considerably good precision.

You can vary the spindle speed between 0 and 24,000 RPM using the VFD.

The VFD provided with the kit for controlling the speed of the spindle is a 220 V, 0-400 Hz unit.

The spindle is water-cooled, and the kit contains a 220 V submersible pump which makes it suitable for long hours of operation.

The spindle, VFD and the water pump together can draw currents of around 15 A, so you have to provide proper breakers for setting this up.

The connectors used are aviation plugs that have good waterproofing.

The good labelling on the wires, along with the documentation and videos, will help you in the installation process.

In addition, there are plenty of Youtube videos on setting up this spindle to help you out.

MYSWEETY 2.2 kW CNC Spindle Motor Kits
Kit contains a 2.2KW Water Cooled Spindle Motor, 2.2KW Inverter, 80mm Clamp Mount, 13 pcs ER20 Collet, 5m Water Pipe, and Water Pump

6. Mophorn Spindle (4 kW)

Mophorn 4KW ER20 Air Cooled Spindle Motor
Mophorn 4KW ER20 Air Cooled Spindle Motor
Length, Breadth, Height5" (127mm), 4.5" (114mm), 13.5"(343mm)
Maximum RPM18,000
Power4 kW
ColletER20
Tool shaft diameter0.039" - 0.512" (1 - 13 mm)
CoolingAir-cooled

Quick summary of Mophorn 4KW ER20 Air-Cooled Spindle

The Mophorn spindle motor is the only motor on this list to feature a square body. So if you have a frame that only holds square-shaped motors, the spindles from Mophorn are a good selection.

This spindle weighs around 19 lbs and is sturdy spindle is sturdy. It has a size of 4.5” x 5” x 13.5” and can be easier to mount than a cylindrical spindle.

You get an ER20 collet with this spindle that allows you to use tools with shaft diameters between 0.039” - 0.512” and has a runout of 0.004”.

Mophorn also makes 1.5KW ER11, 4KW ER25 , 7.5KW ER32 spindles all of which are available on Amazon.

You can vary the spindle speed between 1-18,000 RPM. To manipulate the speeds of the spindle, you’ll have to hook it up to a VFD.

It is rated at 220V and can produce 4KW of power, and will draw a maximum current of 10A at a frequency of 300 Hz.

The spindle is air-cooled and can be used for milling or engraving on wood, stone, and soft metals like aluminum.

These spindles are quiet and well-balanced, providing you with good stability to make use of the high speeds.

The material of construction is strong and can last for a long time.

Mophorn 4 kW CNC Spindle Motor Kit
Mophorn 4 kW Square Air Cooled Spindle Motor with up to 18000 RPM at 220V. Kit includes ER20 Collet.

Which Spindle Motor for Metal Milling (Steel)

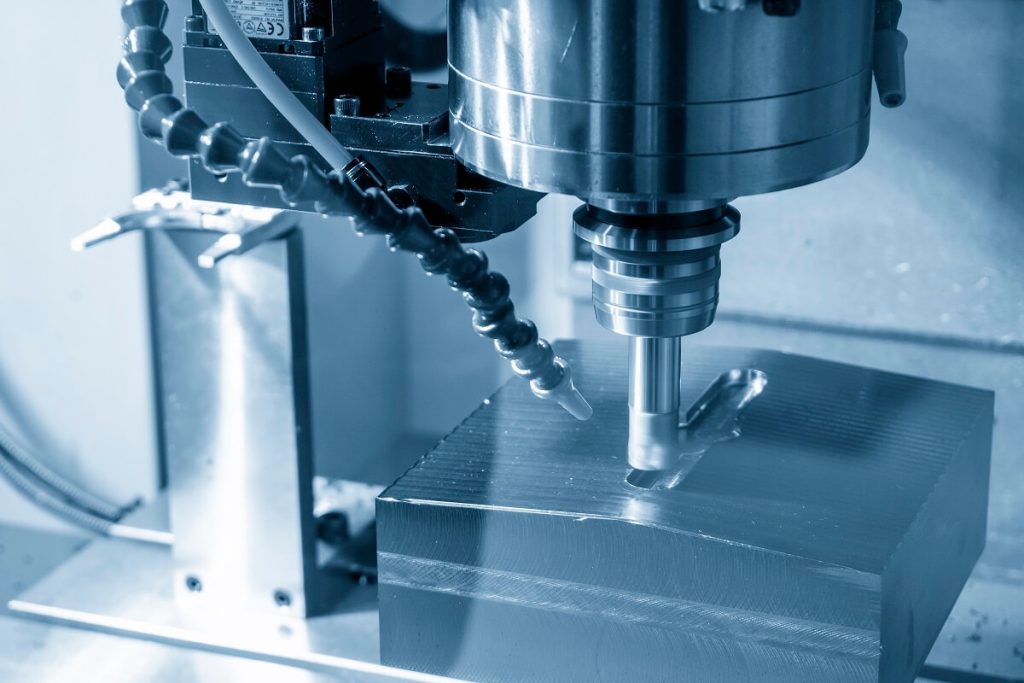

Spindle on a Steel Machining CNC
Spindle on a Steel Machining CNC

Typically, for machining metals like steel, you need low RPM (compared to high RPM for aluminum and wood) and high power in your CNC spindle.

The capability to machine steel is also dependent on the rigidity of your machine and the tools used. For steel, it is recommended to choose a spindle with high power at low RPMs.

The forces acting on the tool, and consequently on the spindle, are more when machining hard materials such as steel.

It is advisable to choose a CNC mill motor with a steel body, rigid construction, and ceramic bearings. Ceramic bearings can hold the runout under greater force than metal ball bearings.

The power and speed of the CNC milling spindle are determined also by the type of machining operation you intend to do.

For example, drilling on steel requires more power than milling or turning steel.

Typically milling operations can have 50% more speed than drilling operations when processing steel.

In the case of turning, speed can be 100% more than drilling operations.

For businesses needing to do heavy production work, I strongly recommend ATC spindles instead of regular CNC spindles.

Factors to consider while selecting a Spindle for your CNC Router

1. Size and weight

The size of the motor determines whether it can be properly mounted on your CNC router. It is also important to consider the shape of the spindle as there are cylindrical and square-shaped spindles available.

Check whether the frame of your CNC router is strong enough to carry the weight of the spindle. The stepper motors on the axes need to have enough torque to handle the weight of the motor.

2. Speed and Power

The spindle speed determines the range of work that you can do. For example, cutting soft materials require low speed as large chunks of material can be cut off easily.

In the case of metals, shaving off large pieces of metals is difficult, and hence the material removed in one cut is drastically reduced.

To achieve fast cutting speed, you will have to increase the spindle speed to make more cuts per minute.

The power of the spindle is another factor that limits the projects that you can undertake. A spindle with enough power can provide smooth cuts and prevent damage to the workpiece. On the other hand, a spindle without enough power can cause the spindle to stall.

3. Type of Cooling

Spindles with very high RPM tend to get heated quickly, and hence it is important to provide proper cooling to the spindle.

The most common types of cooling available for spindles are air cooling and water cooling. Water has a higher heat capacity than air, and hence it can remove more heat from the motor. It is best to use distilled water over regular water to prevent damage to the spindle.

Air-cooled spindles tend to have better torque characteristics than water-cooled spindles due to their design. But air-cooled spindles produce more noise than water-cooled spindles.

Typically, water-cooled spindles last longer and provide better accuracy than an air-cooled spindle.

A major problem in operating a water-cooled spindle is the effect of climatic conditions. As when the weather is cold, water may freeze up and prevent you from running the spindle.

Water cooling is preferred over air cooling when you have to operate the spindle for prolonged periods.

4. Speed Control

The low-powered spindle can be controlled by motor drivers with PWM (Pulse Width Modulation).

A VFD (Variable Frequency Drive) is preferred for high-powered spindles as they provide better control and stable operations.

It is necessary to choose the correct VFD for your spindle. An improper configuration can kill your spindle immediately. Check whether the voltage, current and frequency rating of the spindle matches your VFD ( if you already have a VFD).

It is also possible to control the speed of the spindle using the CNC controller that runs your stepper motors.

5. Cost

You may pay a high price for a spindle with high power and RPM, but if the high power and RPM are never used, the price you pay becomes wasted.

You’ll also be spending more on the drives for such spindles. So buy a spindle that satisfies the requirements of all the projects that you intend to undertake.

Spindle vs Router for CNC

CNC Spindles are manufactured solely for the purpose that you bought them for, CNC machining.

Routers are consumer-grade devices suitable for intermittent use, whereas a spindle can work for hours on end.

Spindles make less noise than the router, but the sound of the tool against the workpiece still exists.

You can plug a router directly into a wall socket, and you'll be good to go, but a spindle requires a VFD or driver device to run them.

Routers are air-cooled devices, and spindles are available with air-cooled as well as water-cooled options.

In addition, the range of speed in a spindle is greater than a router.

Routers tend to bog down under heavy load conditions; a spindle can take on heavier loads than a router.

The runout on the routers are significantly more than spindles, and it has a considerable effect on accuracy. Moreover, spindles run smoother than routers.

A router is easy to set up and does not require additional accessories, and is relatively simple to operate, whereas a spindle would require a VFD and water pump (for water-cooled spindles) to operate.

If your application requires good precision and long hours of use, a spindle, although expensive, would be a good choice for you. However, if your projects can have good error margins and have short runs, a router would be economical.

I examine the choice between a spindle and a router in detail here- CNC Spindle vs Router.

About John

Hey I'm John. I talk about CNCs and Power Tools at Mellowpine. I'm a CNC hobbyist who has been making CNCs and writing about CNCs for a while. I currently also work as a consultant for business owners and hobbyists setting up their own CNCs. If you have any questions related to CNC, I'd be happy to answer them. Reach me at john@mellowpine.com

DIY Profile
John

Hey I'm John. I talk about CNCs and Power Tools at Mellowpine. I'm a CNC hobbyist who has been making CNCs and writing about CNCs for a while. I currently also work as a consultant for business owners and hobbyists setting up their own CNCs. If you have any questions related to CNC, I'd be happy to answer them. Reach me at john@mellowpine.com

Thanks for signing up.
Some error occured. Please try again.

Comments

The comments are closed.
