How to Laser Engrave a Wine Bottle: Tutorial



John Abraham
Hey I'm John. I write about Manufacturing, Metalworking, CNCs and Lasers at Mellowpine. If you have any questions related to CNCs or Lasers, I'd be happy to answer them. Reach me at mail@mellowpine.com


How to Laser Engrave a Wine bottle

Laser engraving is a popular technique for customizing and personalizing wine bottles.

Whether for a special occasion or as a thoughtful gift, laser engraving is an easy way to add a touch of uniqueness to wine bottles.

You can laser engrave a wine bottle by coating it with paint and engraving it using a rotary-enabled diode or CO2 laser engraving machine. For good results, use a high-powered laser having a small laser spot that can create detailed and precise engravings faster.

This article will teach you how to laser engrave wine bottles and provides many helpful tips and tricks.

MellowPine is reader-supported. When you buy through links on my site, I may earn an affiliate commission at no extra cost to you.

Laser Engraving Wine Bottles – Things to Know

Selecting the right bottle

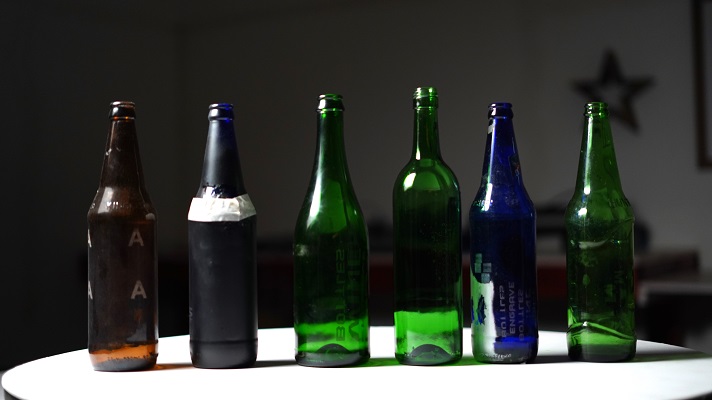

wine bottles for laser engraving
Wine bottles for laser engraving

First and foremost, to get a proper engraving, selecting the right bottle is important.

Clear or light-colored bottles are the best for laser engraving as they make the design more visible.

I recommend you use bottles with a yellowish or brown tinge, as they show the engraving well.

Also, it’s essential to keep in mind that the darker the color of the bottle, the more difficult it will be to achieve the desired level of contrast in the final design.

The size of the bottle is also an important factor to consider.

For example, a small design can be engraved on a small-diameter bottle, but a large design might require you to use a bottle with a flat face or large diameter.

A small design on a large bottle may look out of proportion and may not be as visually appealing as on a smaller bottle.

Initially, the engraving may appear dull right out of the machine, but after cleaning and pouring the wine, the engraving will have a nice, premium look.

To ensure the best results, you should follow the manufacturer’s instructions for the engraver and adjust the settings to match the color and material of the wine bottle.

Since wine glass is fragile, you’ll have to be extra careful when engraving it.

Preparing the Glass Surface

Washing wine glass surface for laser engraving
Washing wine glass surface for laser engraving

To start, you need to find a sturdy glass bottle. A weak bottle won’t be able to handle the heat of the engraving process.

Clean the bottle with a mixture of soap and water. Then, use rubbing alcohol to remove any oil or residue that could interfere with the engraving.

Once it’s dry, cover the bottle opening with some masking tape to prevent paint from getting inside.

Covering the wine bottle opening
Covering the wine bottle opening

Cover the bottle with black paint or zinc coating to make it opaque. This will stop any light from entering the bottle and create a sharper and more detailed design.

Be careful handling the bottle from this point on.

Any smudges, fingerprints, or dust will affect the engraving. Also, after cleaning, the bottle might be slippery.

Type of Paint Coating

Applying paint on a wine bottle
Applying paint on a wine bottle

Before you paint, it is important to understand why painting a layer on top of a wine bottle is necessary before engraving.

Laser beams are not absorbed by glass, so a medium that can interact with laser beans should be applied over the wine bottle to absorb the laser beam and heat the glass surface.

Paint can help achieve this. When a laser beam hits the painted surface, it heats and melts the glass surface creating a semi-transparent layer on the glass.

This allows engraving on the glass underneath. You can use acrylic paint or zinc paint for this purpose.

Zinc paint is metal-based and conducts more heat than acrylic paint, which can result in better engraving.

Acrylic paint is a good option if you want more control over the final design, as it is easier to apply and control the thickness of the paint layer.

Airbrush, Sponge brush, and Spray – What to use?

Painting wine bottle surface with an airbrush
Painting wine bottle surface with an airbrush

Before laser engraving wine bottles, getting an even coating layer on the glass surface is important.

The paint layer’s thickness will affect the engraving’s depth, so you must ensure it’s just right.

Several options for applying the paint are available, such as airbrush, sponge brush, and spray.

If you’re a beginner, it’s best to go for an airbrush or spray, as these are easier to use and create an even coat.

Airbrushing requires a kit with different nozzles and needles to control the paint flow and spray pattern.

Spray painting on a wine bottle
Spray painting on a wine bottle

Spray cans provide a consistent and even coating, but you need to work in a well-ventilated area.

On the other hand, creating an even coat with a sponge brush is hard, so it’s not recommended for beginners.

If you’re using a sponge brush, use it lightly and evenly to avoid drips and smudges.

Painting wine bottle surface with a sponge brush
Painting wine bottle surface with a sponge brush

Engraving Wine Bottle – Diode vs CO2 Lasers

When it comes to engraving wine bottles, you can use either a diode or a CO2 laser.

Diode lasers are inexpensive and easy to use, but they can’t work on all materials, and the engraving might not be well-detailed.

On the other hand, CO2 is more powerful and can work on most materials, making them suitable for a wide range of projects.

CO2 lasers finish engraving quickly, but they are expensive and need high maintenance.

Overheating of Glass

A wine glass broke due to overheating
A wine glass broke due to overheating

When it comes to glass engraving, one of the major concerns is the risk of overheating.

This can cause the bottle to crack, making your project fail. To prevent this, it’s essential to take some precautions during the engraving process.

One of the crucial steps is to provide proper breaks to allow the bottle to cool down. This is especially important when working on a large or complex project.

You can also help cool the bottle by covering it with a damp cloth or spraying it with water.

Another tip is to ensure the bottle has a hole in the cap or a similar opening before engraving.

This will allow hot air inside the bottle to escape, reducing the risk of overheating and cracks.

A cheap or low-quality bottle is more likely to crack or break during engraving, so it’s worth using a high-quality bottle to get the best results.

Laser Settings for Engraving Wine Glass

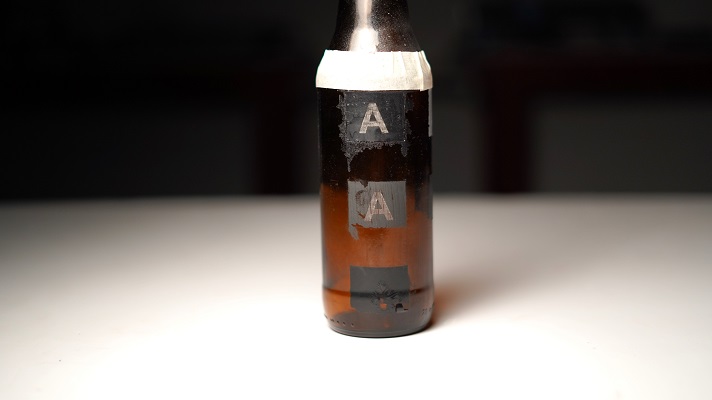

Test engravings performed on a wine bottle
Test engravings performed on a wine bottle

The power and speed settings for the diode and CO2 laser are given below in the tables for engraving wine glasses.

Use these settings as a reference. The actual settings for your machine can vary.

WattPowerSpeed (mm/min)
5W100 %3000
10W100 %4000
20W100 %10000
Wine glass laser engraving settings for diode lasers
WattPowerSpeed (mm/min)
65W27 %19500
100W25 %19500
150W20 %19500
Wine glass laser engraving settings for CO2 lasers

Before you engrave any material on a laser machine, it’s important to run a power scale test to find the proper settings.

This will ensure the quality and longevity of your machine by measuring the power output and controlling the speed accordingly.

The power scale test is a crucial step in the laser engraving process, as it ensures that the machine is operating at the correct power level for the material and design is engraved.

This, in turn, results in a better and more precise output.

Additionally, an air assist is often beneficial in protecting the laser head and the glass bottle from overheating, resulting in better engraving quality and surface finish.

Software for Laser Engraving

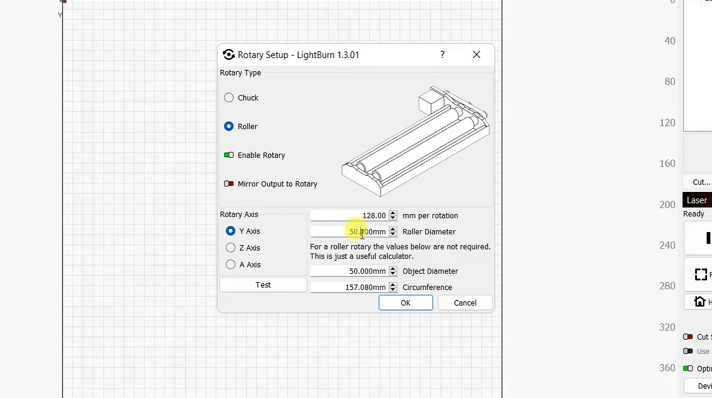

Setting up the rotary configuration on LightBurn software
Setting up the rotary configuration on LightBurn software

If you are looking to laser engrave wine bottles, there are many software options. Two of the most popular ones are LaserGRBL and Lightburn.

LaserGRBL is free and open-source, making it great for DIYers and hobbyists. It is also simple to use and has most features, making it ideal for beginners.

Lightburn, on the other hand, is a more advanced option that offers many features and capabilities.

It is a paid software but is worth the cost as it can edit vector images and convert images easily. Additionally, it gives you more control over your design.

This makes Lightburn an excellent investment for those looking to take their laser engraving to the next level.

Calibrating and Setting up the Roller

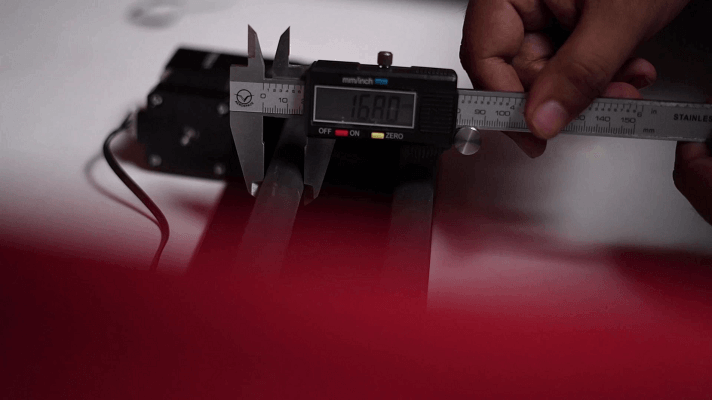

Measuring the roller diameter
Measuring the roller diameter

It is important to take the time to set up the roller correctly to ensure that your laser engraver is working at its full potential and provides accurate results.

The first step in setting up the roller is to measure the roller diameter.

To get the roller diameter, use a measuring tape to measure the circumference and divide it by 3.14 (pi). A caliper can provide more precise measurements.

Once you have the diameter, you can set the roller on the X-axis of your printer.

Next, go to the roller setting in your software and enable the roller and enter the roller diameter that you measured.

The next crucial step is setting the millimeter per rotation. To set the millimeter per rotation, use masking tape and a marker.

Cover the mounting and the roller with two pieces of tape. Mark the meeting line on both tapes.

Give the software a test run to see if the lines cross after a rotation. If the lines do not cross, the millimeter per rotation is low and needs to be adjusted.

Keep testing until you get the right results. This will ensure that your laser engraver is working accurately.

Watch the following video to see how I calibrated and set the values.

YouTube video
Video tutorial on laser engraving wine bottles

Engraving the Design

laser engraving a wine bottle
Laser engraving a wine bottle

It’s important to secure the bottle in place while engraving it. A bottle holder or clamp can help keep it stable, ensuring accurate engravings.

To test the design, you can wrap a piece of paper around the bottle and run a test design. This will help you determine the direction and printing layout for the bottle.

Once you have determined the layout, align the bottle with the roller.

Also, pay attention to the distance between the bottle and the laser head to ensure the design is even.

Lastly, remember that some bottles may have slight variations in shape, size, or thickness, so always test the design before performing the actual engraving.

Different Laser Engraving Techniques for Wine Bottles

Using a wet towel to cover the bottle

It involves covering the bottle with a wet towel before laser engraving.

This helps to keep the bottle cool during the engraving and prevents it from overheating.

Using a wet towel is reliable and can give good results if done correctly.

However, keeping the towel wet throughout the engraving process can be difficult and may not be the most efficient way.

Using masking tape

In this method, you must cover the bottle with masking tape before engraving. This will protect it from the heat produced during the engraving.

Keeping the tape in place during engraving can be tricky and so it may not be the most efficient method.

Using dishwasher soap

In this method, before engraving the bottle, you should apply a small amount of dishwasher soap on the bottle’s surface.

It helps create a barrier between the bottle and the heat generated during engraving.

Controlling the soap layer’s thickness is difficult and directly affects the results. So, the dishwasher technique also is not a reliable option.

Using a Laser tape

This technique requires you to use a special tape that is designed for laser engraving.

The tape protects the bottle from the heat generated during the engraving process.

This is the most reliable and efficient method. It is also safe as it prevents overheating and protects the bottle.

Final Thoughts

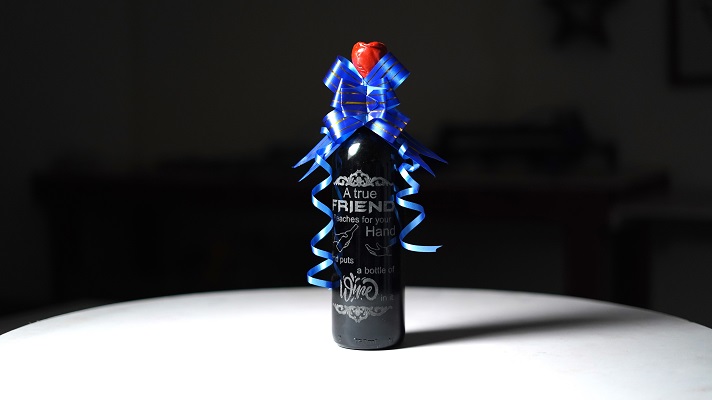

Laser engraved wine bottle
Laser engraved wine bottle

The best part about laser engraving wine bottles is the ability to customize them creatively.

For example, you can engrave humorous quotes, personalized wishes, company logos, event dates, labels, custom designs, etc.

Laser engraving wine bottles are a unique and personal way to give a gift that will leave a lasting impression on friends and family.

You can also use this method to promote your business or brand.

It’s relatively easy to do, and anyone can laser engrave a wine bottle with the right equipment and software.

It’s also a fun and creative activity that both beginners and experienced engravers will enjoy.

You might also like reading,

How to laser engrave a photo?

Frequently Asked Questions

What should you not laser engrave?

You should avoid laser engraving any materials that contain toxic elements or alloys, such as carbon fibers or chromium alloys. Additionally, highly flammable or combustible materials, like certain plastic, rubber, or wood, should not be laser engraved. Lastly, materials with a high melting point or that give off harmful fumes should be avoided. Examples include PVC, ABS, and other types of plastic that may release toxic fumes when heated.

Does engraving on wine bottles last forever?

The laser engraving on wine bottles will be permanent, but exposure to sunlight, water, or chemicals can reduce its longevity. You should avoid such exposures to ensure the engraving stays put.

Is laser engraving hard to learn?

Learning laser engraving is not that hard. It may seem difficult, but laser engraving is quite easy to learn. You can find many helpful resources online, such as forums, YouTube videos, and even courses on laser engraving.
