Wood lathes are powerful tools that offer the flexibility to carve complex shapes with relative ease.
These lathes are generally found in benchtop design and offer high spindle speed for smooth material removal.
Wood lathes are significantly different from metal lathes, and there are various factors that determine the quality of machining on a wood lathe.
This article provides a detailed guide on how to use a wood lathe to produce high-quality products while ensuring the safety of the operator.
In the end, I’ve also discussed some techniques to improve the quality of your woodworking projects.
MellowPine is reader-supported. When you buy through links on my site, I may earn an affiliate commission at no extra cost to you.
How to Use a Wood Lathe: Step-by-Step
| Steps | Action | Description |
|---|---|---|
| Step 1 | Select the lathe | Appropriate size and configuration for your project |
| Step 2 | Read safety instructions | To ensure safe use of a lathe and avoid accidents |
| Step 3 | Prepare the workpiece | Cut the wooden workpiece to fit the lathe |
| Step 4 | Mount the workpiece | Align the chuck to ensure eccentricity of the workpiece |
| Step 5 | Select the tool | Choose the best suitable tool for your application |
| Step 6 | Set the Appropriate Spindle Speed | Set the speed according to the type of wood |
| Step 7 | Begin the Process | Ensure safety protocol and begin the process |
| Step 8 | Inspect the Results | Check the size and surface finish of the product |
| Step 9 | Sanding and Finishing the Workpiece | Finish the product to enhance its quality. |
Summary of steps to use a wood lathe

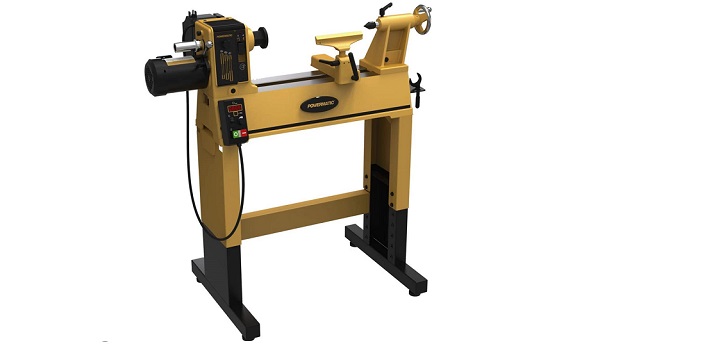

Step 1: Select an Appropriate Lathe
The very first requirement to begin turning wood on a lathe is to have a good wood lathe for your project.
When selecting the lathe, you must ensure that it can house the workpiece that you want to turn.
Another important aspect of a wood lathe is its spindle speed. The wood lathe should provide variable speed settings to adjust for performing various turning operations on different types of wood.
Generally, wood lathes for beginners provide comparatively slower RPM output than professional wood lathes.
Depending on their size and power configuration, wood lathes are generally classified as benchtop lathes (mini, midi) and full-size lathes.
Furthermore, the flexibility to adjust the tool rest also plays an important role in selecting the wood lathe.
While most wood lathes provide a tool rest that can be moved along the length of the workpiece, some also provide the ability to adjust the inclination of the tool rest to machine wood at an angle.
Selecting the appropriate lathe according to your requirement will ensure quality output with a smooth surface finish.
Powermatic is one of the leading manufacturers of wood lathes and they provide different variants, such as mini wood lathes and full-size wood lathes, suitable for almost every woodworking application.
Step 2: Read the Safety Instructions
After selecting the wood lathe for your application, it is important to familiarize yourself with the safety instructions to avoid accidents.
The basic safety rule for operating wood lathes is to avoid wearing loose clothing or hanging jewelry items, as they risk getting tangled in the spindle and causing accidents.
For operators having long hair, it is advised to securely tie their hair up to ensure safety.
Furthermore, it is recommended to inspect the tool for cracks or other damages before using them, especially when performing heavy machining with deep cuts.
It is also important to wear safety gear such as face shield, glasses, and gloves to prevent the chips from coming in contact with your eyes and protect your hands from abrasion.
Another important safety instruction is to learn about the parts of the lathe and be familiar with the safety features that can halt the process immediately, in case of an emergency.
Step 3: Prepare the Workpiece
Wood lathes can perform turning operations on wooden blocks and give them the desired shape.
However, these wooden blocks must be cut into small sizes that perfectly fit the work area of the lathe.
Furthermore, machining the edges of the block on lathe can result in vibrations and sometimes lead to damaging the workpiece.
Therefore, for beginners, it is advised to chamfer the edges of the block to reduce the unwanted vibrations caused during the turning process.

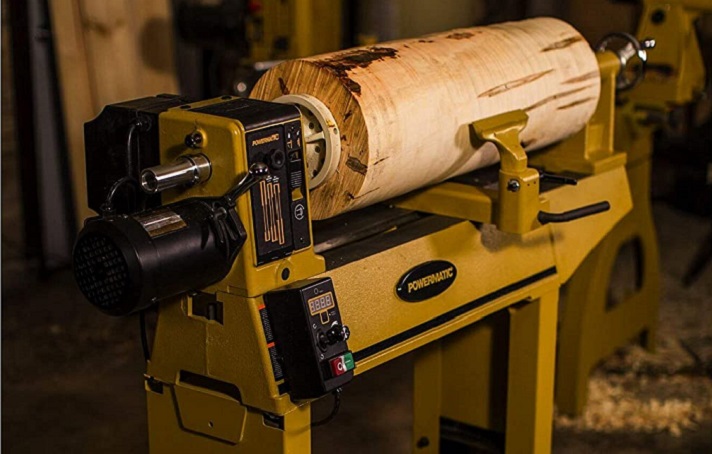

Step 4: Mount the Workpiece on Lathe
After preparing the workpiece, it’s time to mount it on the lathe.
When mounting a blank on a wood lathe, it is important to find the dead center of the front and rear faces of the workpiece.
You can use a center finding tool to find the exact center of the blank and use a tool such as a spring-loaded punch to mark the center.

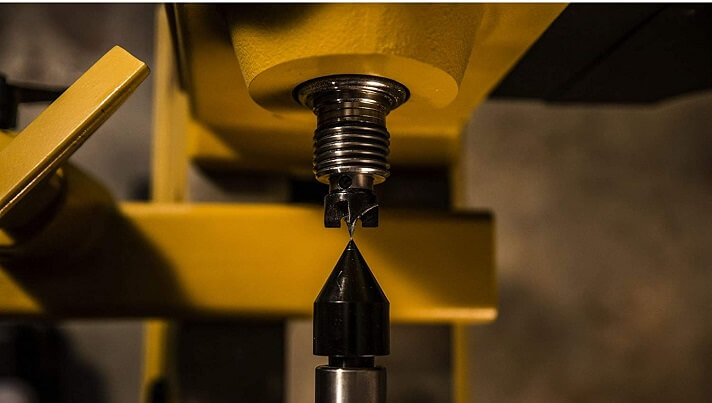

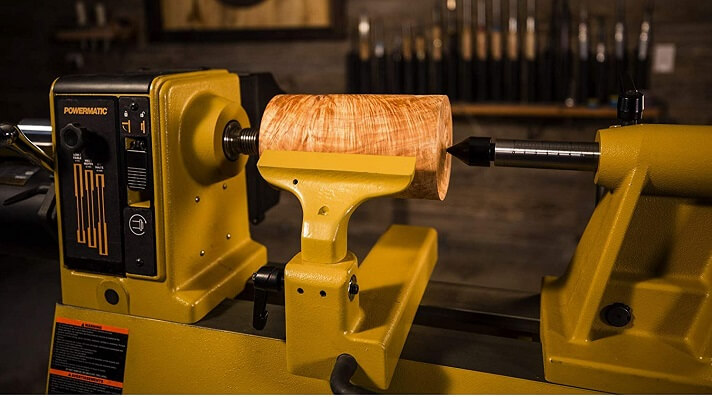

By Using Spindle Spur
After marking the center, you can align the tip of the spindle spur (mounted on headstock) with the center of the blank and bring in the tailstock to apply pressure on the other end.
You can also use a rubber or plastic mallet to tap the workpiece against the spindle spur to ensure a firm grip.
The sharp teeth of the spindle spur grip the workpiece while the tailstock applies the necessary pressure to hold the workpiece firmly between the tailstock and headstock.
This method can be used for mounting workpieces with irregular surfaces, but it does not provide a strong clamping force for heavy machining operations.

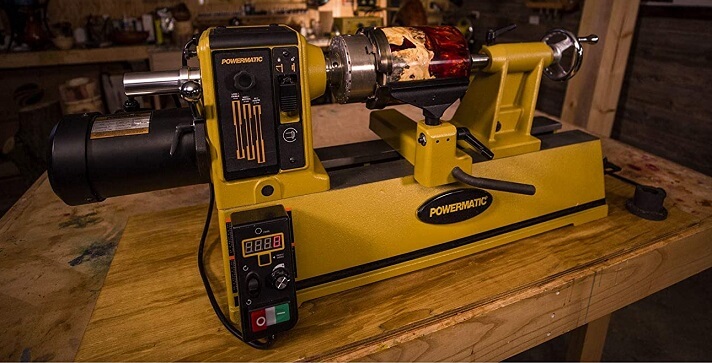

By Using Jaw Chuck
Jaw chuck is another way of mounting the workpiece on a wood lathe.
In this method, a threaded screw is fastened into the face of the wooden workpiece, and that screw can be clamped by a 3-jaw or 4-jaw chuck, mounted on the headstock.
This method is suitable for applications involving moderate cutting force and provides access to the face of the workpiece for facing operations.

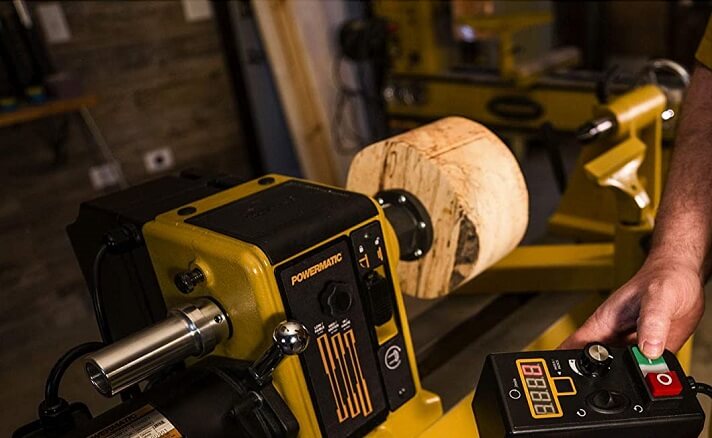

By Using Face Plate
Another method for mounting the workpiece is using a face plate, clamped to the workpiece with the help of multiple screws.
The faceplate is then mounted on the headstock spindle. This method provides firm workholding and can be used for heavy-duty machining applications.
Step 5: Select the Tool
After mounting the workpiece on the lathe, it’s time to select the tool.

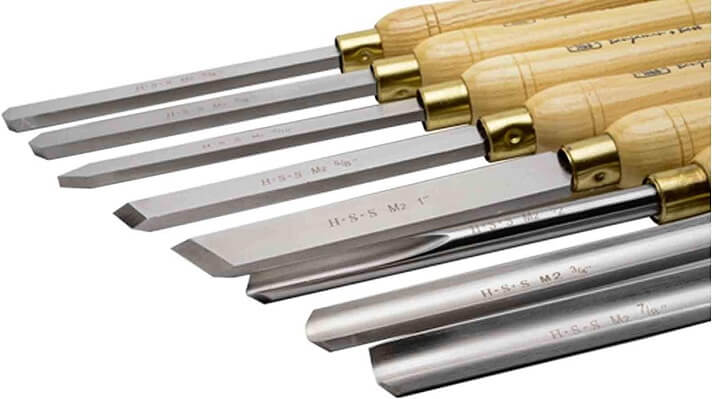

There are various types of lathe cutting tools for different machining operations, and depending upon your application, you can select the right tool for the job.
A roughing gouge is one of the most commonly used tools for rough turning operations, where a large volume of material is removed.
This tool is used to shape the wooden blank into a cylindrical object of desired diameter.
Similarly, you can use a skew chisel to smoothen the surface of the cylindrical workpiece and perform a finish turning operation.
You can also use other tools like a parting tool, boring tool, facing tool, etc., to perform other operations on your workpiece.
Unlike metal lathe axis system, where the cutting tool can move along fixed axes, in wood lathe, the cutting tool can be freely moved around by the operator.
Step 6: Set the Appropriate Spindle Speed
| Blank Diameter (inches) | Minimum Speed (RPM) | Maximum Speed (RPM) |
|---|---|---|
| 9″ | 650 | 1000 |
| 10″ | 600 | 900 |
| 12″ | 500 | 750 |
| 14″ | 420 | 640 |
| 16″ | 370 | 560 |
Minimum and maximum optimal speed for workpieces of different sizes
The spindle speed of a lathe is measured in terms of rotations per minute (RPM).
Compared to metal lathes, wood lathes generally have higher spindle speed with lower torque, which facilitates in smooth gliding of the cutting tool through soft wood.
High speed generates enough inertial force to produce the shearing effect between the workpiece and tool, performing the required cut.
The rule of thumb for speed control on wood lathe is that the larger the diameter of the workpiece, the slower should be the spindle speed.
It must be noted that, when turning a workpiece at high RPM, you must ensure things like stability of the lathe, secure mounting of workpiece, and integrity of the workpiece.
When working on a weaker workpiece such as a glued piece of wood, or wood with cracks, knots, or inclusions, it is recommended to use slow spindle speed.
You can use the following formulae to calculate the minimum efficient speed and maximum safe speed for a wooden workpiece.
Minimum efficient speed = 6000 ÷ Workpiece Diameter
Maximum safe speed = 9000 ÷ Workpiece Diameter
Furthermore, for workpieces with a diameter of less than 2″ (such as pens), it is recommended to set the spindle speed at around 3500 RPM or lower.

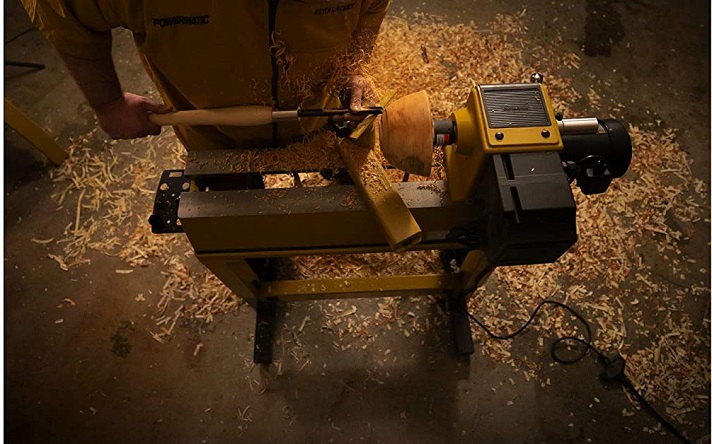

Step 7: Begin the Process

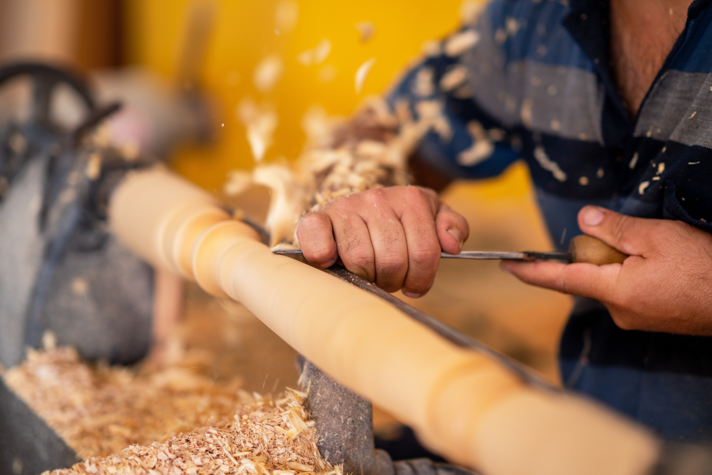

After completing all the above steps and setting the right spindle speed, you can place the cutting tool on the tool rest and begin the process.
Wood lathes consist of a hand-held cutting tool that is rested on the tool rest, therefore it is important to hold the tool firmly during the machining process.
A loosely gripped tool will result in loud vibrations, when in contact with the workpiece, and produce chatter marks.
Generally, most operators prefer to hold the tool flat on the tool rest with the knuckle of their index finger pushed against the body of the tool rest for extra stability.
During the execution of the process, you can check the uniformity of your cylindrical workpiece by placing the cutting tool flat on the rotating surface.
If the tool remains stable, the workpiece is uniform on all sides, but if the tool rattles, the workpiece requires further machining to attain a uniform diameter.
Step 8: Inspect the Results
After completing the machining process, you can check the shape, size, and surface finish of the workpiece.
The hand-held tool does not provide the ability to ensure exact dimensions during the process, and therefore it is important to measure the workpiece after completing the process.
The diameter of the workpiece can be checked by using measuring instruments such as micrometers and calipers.
Step 9: Sanding and Finishing the Workpiece
After inspecting the part and ensuring that it matches the desired size and shape, you can sand the wooden workpiece to enhance its surface finish.
You can also polish or stain the workpiece to enhance its contrast and add to its aesthetic value.
Techniques to Improve the Machining Quality of Wood Lathe
Wood lathes are versatile machines that can be used for carving different shapes out of wood.
An industrial-level wood lathe can also be used for machining metal, but cannot perform heavy-duty machining operations on hard metals.
This is because these lathes are specifically designed to machine soft materials like wood, and there are various methods to further enhance their ability to machine wood.
Stabilize Lathe to Eliminate Vibrations
The primary element that affects the machining quality is the vibrations caused during the machining process.
These vibrations result in the unwanted rattling of the hand-held tool, thereby degrading the quality of the surface finish.

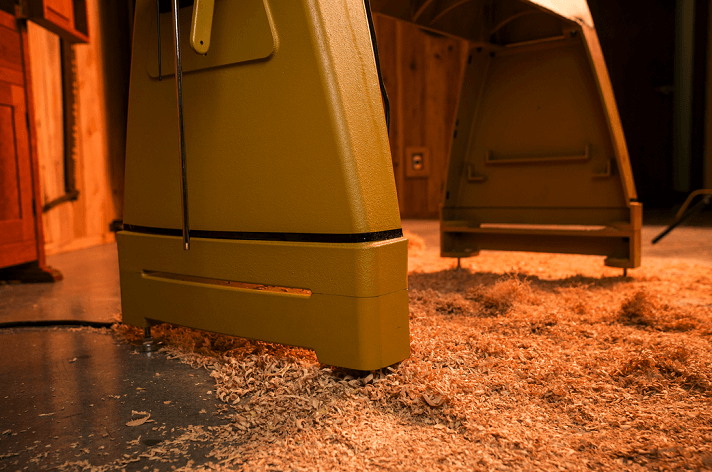

Therefore, the machining quality of a lathe can be improved either by placing heavy weights on the base of the lathe or by bolting the lathe firmly to the floor.
Placing weight on the base provides sturdiness to the machine and reduces the vibrations caused due to the operation of the machine.
Whereas bolting the machine holds it firmly in place and eliminates the unwanted vibrations.
Select the Best Suitable Wood for the Process
The selection of wood primarily depends on its application. For example, Ash is best suitable for making baseball bats, whereas mahogany provides beautiful texture and look for furniture.
Softwood is comparatively easier to turn on a lathe than hardwood. The cutting tool glides through softwood, thereby producing a smooth surface finish.
Walnut is one of the best examples of softwood that provides high aesthetical value and is extremely easy to machine.
Machining softwood requires comparatively less cutting force, which reduces the vibration of hand-held tools during machining.
Therefore, selecting the best suitable softwood for your application will help improve the surface finish of the product.
Perform Shallow Cuts for Better Quality
Wood is a fibrous material that can be cut easily, but performing deep cuts increases the shearing force applied to the material and can lead to cracks in the fibers of the workpiece.
Furthermore, it is recommended to ensure the sharpness of the cutting tool used for machining wood because a blunt edge will increase the impact load and crack the workpiece along its grains.
Therefore, it is advised to use a sharp tool and perform shallow cuts at high speed to produce wooden parts with a high surface finish.
Measure the Dimensions of the Workpiece Regularly
The cutting tool in metal lathes is mounted on a tool post which can be moved precisely using the hand wheels marked with scale.
However, this precise movement is not possible with the hand-held tool of wood lathes.

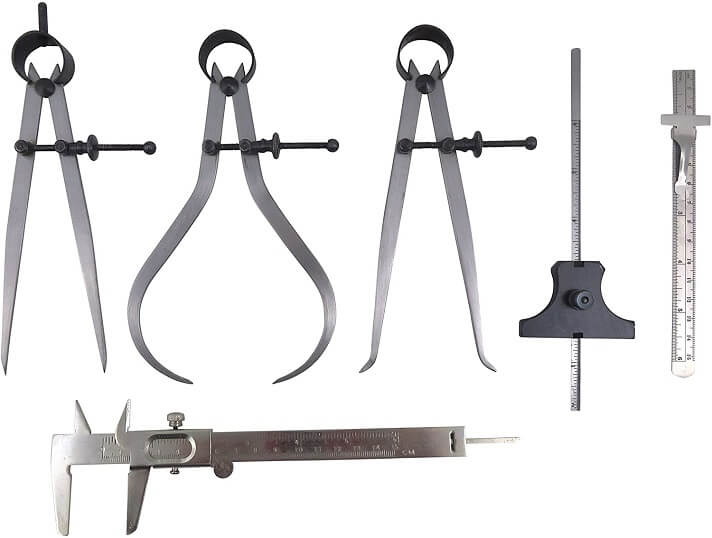

Therefore, it is advised to regularly measure the dimensions of the workpiece by using calipers, like the vernier caliper, to ensure perfect output, as per your requirement.
Final Thoughts
Wood lathes are powerful tools that can be used for carving wood into various different shapes for different applications.
These lathes are easy-to-use, provided you follow the proper procedure and be wary of the safety instructions.
Using a wood lathe is a skill that can be perfected with time, and as every wooden workpiece behaves differently to the machining operation, it is important to have an experienced operator for producing high-quality outputs on a wood lathe.
Frequently Asked Questions (FAQ)
Can we use a metal lathe for turning wood?
Yes, you can use a metal lathe for turning wood. Metal lathes provide high accuracy for machining metal, whereas the hand-held tool of wood lathes provides the flexibility to shape the workpiece with relative ease. Therefore, a metal lathe can be used for machining wood at the cost of flexibility.
Why don’t wood lathes have a tool post?
Wood lathes don’t have a tool post because the tools used on a wood lathe are hand-held tools that provide flexibility to carve the desired shape. Furthermore, tool post provides the ability to deliver constant cutting force to the workpiece, which is ideal for machining hard materials like metals, that offer uniform hardness, whereas wood is a fibrous material with a non-uniform hardness that requires variable cutting force throughout its length. The feedback provided by the tool, in the form of vibrations, helps experienced machinists understand the behavior of the wooden workpiece and alter the force accordingly.
What kind of projects can be made on a wood lathe?
Wood lathes can be used for making a variety of projects like baseball bats, vases, pens, bowls, wooden tumblers, candle holders, etc.
