Ball screw vs Lead screw

Ball screws and lead screws are popularly used in the drive systems of CNC machines.

Although both have similar operations and almost look similar, there are significant differences between the two.

But what exactly makes them different? And which one should you select for your application?

The difference between a ball screw and a lead screw lies in their speed, accuracy, efficiency, and load-bearing capabilities. While ball screw is ideal for applications where high speed and high efficiency with good accuracy and low noise are desirable, lead screws are comparatively cheaper, robust, and self-locking.

This article provides a detailed guide on the differences between a ball screw and a lead screw by going through various factors such as accuracy, efficiency, operation, maintenance, and durability.

MellowPine is reader-supported. When you buy through links on my site, I may earn an affiliate commission at no extra cost to you.

Ball screw vs Lead Screw

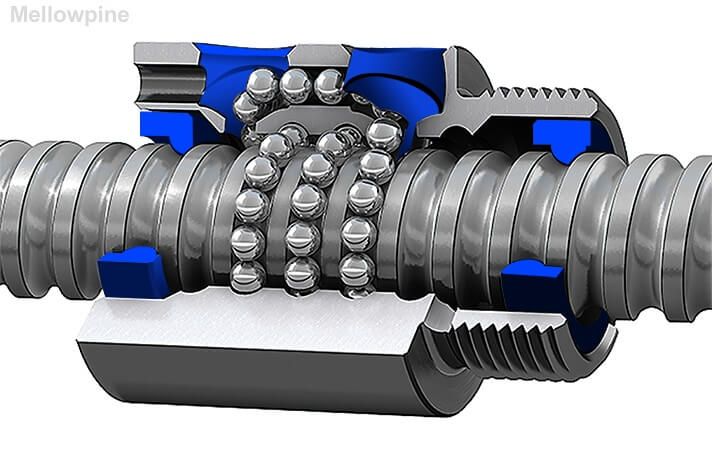

Construction of a Ball screw
Construction of a Ball screw

Ball screws and lead screws are mechanical linear actuators that are commonly used to translate rotary motion into linear motion and are commonly used in CNC machines.

All screws serve the same purpose of converting rotary motion into linear motion, they have distinct differences in their design, performance, and suitability for different types of applications.

Ball screws employ recirculating ball bearings to reduce friction and increase efficiency, whereas lead screws utilize helical threads and a nut to produce linear movement.

Lead screws are metal bars with threads as that of a traditional screw, and the relative motion between the screw and nut causes the linear movement of the latter.

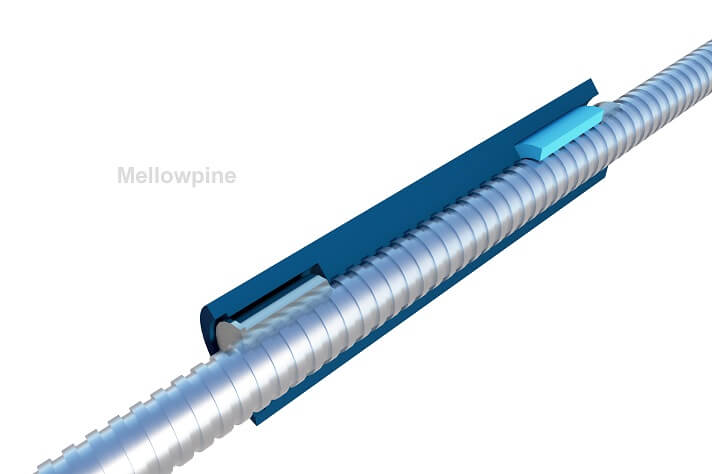

Construction of a Lead Screw
Construction of a Lead Screw

Both have their advantages and disadvantages, and selecting the right one depends on your requirement.

CharacteristicsBall ScrewsLead Screws
EfficiencyHighLow
SpeedHighLow
PrecisionHighLow
CostHighLow
Life cycleLongShort
Noise levelHighLow
BacklashLowHigh
Load CapacityHighLow
Self-lockingNoYes
Differences between ball screws and lead screws

Ball Screw vs Lead Screw- Which has better Accuracy?

Ball screws are known for their high precision and accuracy, and they are often used in applications where high precision is required.

Point contact between the balls, nut, and thread cavity help to reduce friction and provide a smooth motion to the ball screw.

Balls in a ball screw move in a circular motion as the screw rotates, which helps to distribute the load evenly and reduce the amount of wear and tear on the screw.

This ensures that the motion is translated with a high degree of accuracy, which is essential for applications such as linear drive systems of CNC machines.

In contrast, lead screws have less precision due to the single start thread.

A single start thread of a lead screw means that the load is concentrated on a single point, which can cause wear and tear on the screw and reduce its accuracy over time.

Lead screws can achieve an accuracy of around ±0.0762 mm for 304 mm of travel, which is suitable for applications where high accuracy is not the main priority.

Ball screw design allows for precise control of linear motion and can achieve accuracy levels up to ±0.002mm per 300mm of travel, making it ideal for industrial machines, such as CNC mills, CNC routers, CNC laser cutters, and 3D printers.

Ball Screws vs Lead Screws- The Cost-Effective Solution

Ball screws are designed to withstand even the most extreme environments and can be used in high-performance machine tools and delicate medical devices.

Balls in ball screws are available in pre-loaded or non-preloaded options and provide dependable accuracy, repeatability, and cost options.

However, lead screws are often more affordable than ball screws and are also easy to customize with interchangeable leads, sizes, and nut configurations.

If you are looking for a cost-effective but high-precision application, a ground lead screw or a precision rolled lead screw may provide even greater accuracy than the conventional lead screw, but at a slightly higher cost.

The use of a preloaded nut can also improve the accuracy of a lead screw by reducing the clearance between the nut and the screw.

The cost of a ball screw or a lead screw is not just limited to the purchase price but also the cost of maintenance and replacement over the life of the equipment.

A general rule of thumb is that ball screws can cost anywhere from 2-3 times more than lead screws of the same size and length.

Ball screws generally have a longer life cycle than lead screws which means they may be more cost-effective in the long run.

Overall, lead screws offer a reliable and accurate solution for linear motion control at a cost-effective price.

Ball Screw vs Lead Screw- Which is More Efficient?

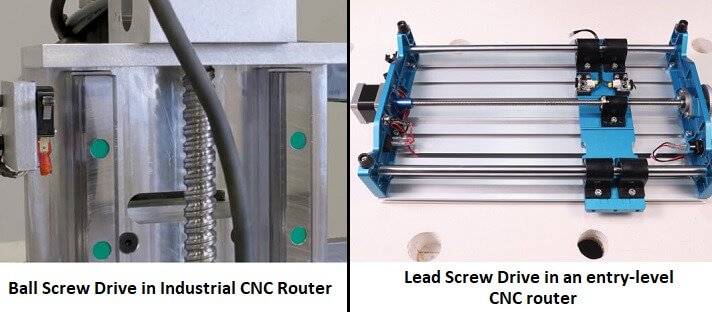

Ball screw drive vs Lead screw drive in CNC machines
Ball screw drive vs Lead screw drive in CNC machines

Ball screws are more efficient than lead screws because the balls in the nut help to reduce friction and increase transmission efficiency, making them ideal for industrial CNC machines.

The efficiency of lead screws is lower because of the single start thread.

Lead screws are self-locking and can be used in vertical applications without the need for a braking system.

In Ball screws, lower friction allows them to run at cooler temperatures and with lower torque.

Generally, ball screws have a transmission efficiency of around 90%, which means that they can convert up to 90% of rotary motion into linear motion.

On the other hand, lead screws are comparatively less efficient than ball screws, typically converting around 50% of rotary motion into linear motion.

Which is More Durable?- Ball Screw or Lead Screw

Ball screws require lubrication with oil or grease, which necessitates regular maintenance to prevent failures and can also lead to problems in dirty or dusty environments.

Apart from that, they involve metal-to-metal contact, which leads to a significantly louder operation than lead screw nuts.

As a result, ball screw drives are ideal for applications where noise factor is not a considerable issue.

A crucial aspect of lead screw nuts, particularly those made of polymer, is that they are self-lubricating and perform well in a variety of environments without the need for messy lubrication.

Lead screws have helical threads that are deeper and a nut that is typically made from a polymer composite or bronze.

Under identical operating conditions, a ball screw is more durable than a lead screw, and therefore, provides better load-bearing capability.

Ball screws have a lower coefficient of friction than lead screws, which means they require less power to operate and generate less heat.

However, ball screws require regular maintenance, and failing to do so can degrade their efficiency and accuracy over time.

Applications of Lead Screws and Ball Screws

EquipmentType of Screw
CNC machinesBall screw & Lead screw
AutomotiveBall screw
Aerospace (flaps and slats)Lead screw
Medical equipmentBall screw
Construction EquipmentLead screw
Industrial automationBall screw & Lead screw
Power generationLead screw
Applications of Ball screw and Lead Screw

Ball screws are immune to the backlash, which makes them ideal for CNC transmission drives where high accuracy is desirable.

On the other hand, lead screw drives are comparatively cheaper and are ideal for applications where low cost is preferred over high accuracy.

However, most mid-range CNC machines use lead screws with backlash correction integrated into their software to compensate for the backlash error.

Apart from that, lead screws are self-locking, making them suitable for handling vertical operations, and are therefore, often used in robots and construction equipment.

Ball screws have a high degree of accuracy and repeatability, making them ideal for industrial automation and medical equipment.

They are used in applications such as packaging machines, assembly lines, manufacturing of automobiles, CT scanners, and MRI machines, where high precision is critical.

Furthermore, ball screws can be easily integrated into new and existing systems, making them a versatile choice for many applications.

Final Thoughts

Ball screws are ideal for applications where high accuracy is desirable irrespective of the cost.

As a result, they are primarily used in high-end industrial equipment.

On the other hand, lead screws are comparatively cheaper and self-locking, making them best suited for low-cost applications where vertical operation is desirable.

Despite their high initial and maintenance costs, ball screws are preferable for long-term applications where high load-bearing capacity is desirable.

Evaluating the load, accuracy, and cost for your specific application can help determine which type of screw is best suited for the job.

Frequently Asked Questions (FAQ)

How does the choice of material for the nut affect the performance of a lead screw system?

The choice of material for the nut can significantly affect the performance of a lead screw. For example, a bronze nut may be more durable and have a longer lifespan, while a polymer composite nut may be quieter and require less maintenance. Each material has its unique properties and it’s important to consult experts to determine which one is best for your application.

How do ball screws compare to other types of actuators, such as pneumatic or hydraulic systems, in terms of cost and maintenance?

Ball screws offer higher precision and repeatability than pneumatic or hydraulic systems, are typically more efficient, and have a longer lifespan.  However, pneumatic and hydraulic systems may be more suitable for specific applications that require high force or rapid movement. In terms of cost and maintenance, ball screws can be more expensive than pneumatic or hydraulic systems, but may require less maintenance over time.

Can a ball screw system be retrofitted onto an existing machine, and what are the challenges involved in doing so?

Yes, a ball screw system can be retrofitted onto an existing machine. However, it can be challenging, as it may require modifications to the machine’s structure and control system. It’s essential to evaluate the feasibility and cost of retrofitting a ball screw system onto a specific machine.
