6040 CNC routers have a work area of 600mm x 400mm (23.6″ x 15.7″).
These CNC routers are generally quite affordable and can work on large workpieces, making them ideal for hobbyists and small businesses.
What are some of the best 6040 CNC routers currently available on the market?
This article lists the best 6040 CNC routers available today.
MellowPine is reader-supported. When you buy through links on my site, I may earn an affiliate commission at no extra cost to you.

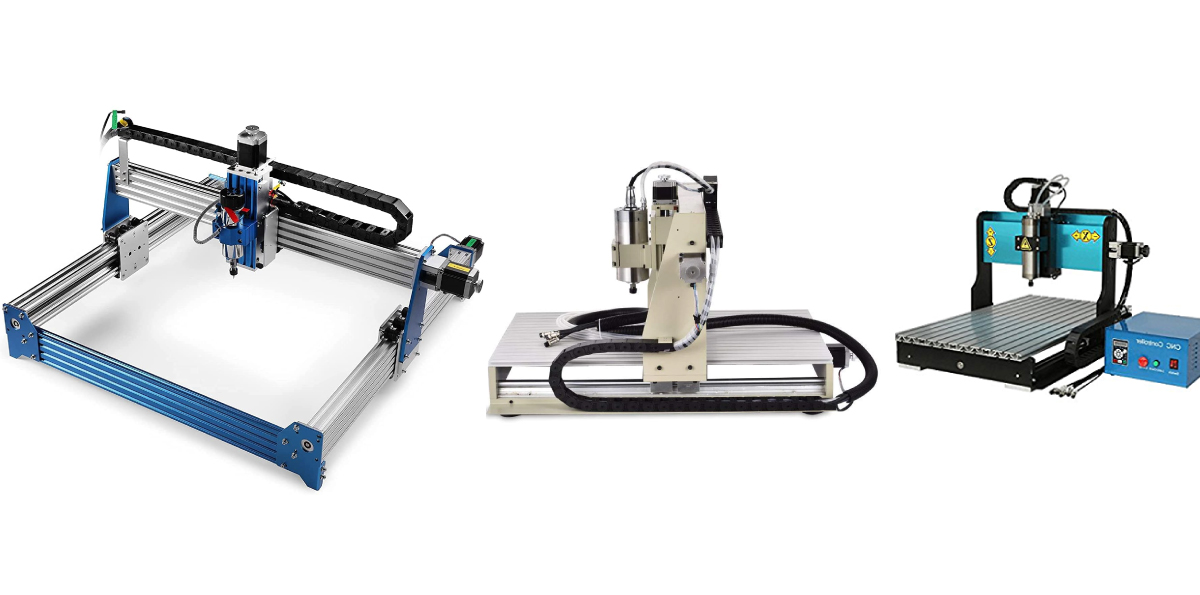

Best 6040 CNC Routers
Based on their features and machining ability, here are the best 6040 CNC routers available in 2023.
1.
| Parameters | JFT 6040 |
|---|---|
| Footprint | 49.21″ x 25.2″ x 35.43″ |
| Workpiece thickness | 3.9″ |
| Spindle speed | 0 – 24,000 RPM |
| Spindle Power | 800W, 1.5kW, or 2.2kW |
| OS compatibility | Windows, Mac, Linux |
| Assembly | ~1 hour |
| Software Provided | Mach 3 and necessary drivers |
| Warranty | One Year |

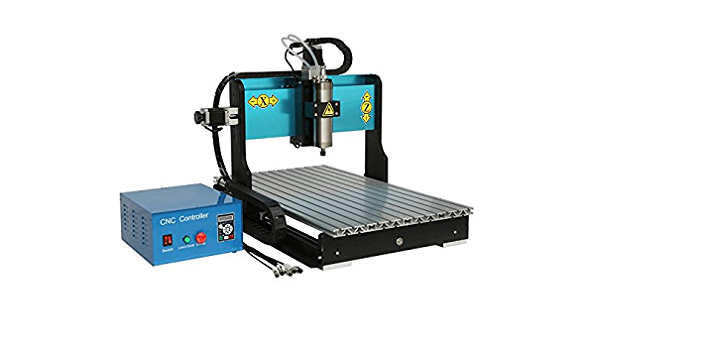

A quick overview of the JFT 6040 CNC router
The 6040 CNC router from JTF has a footprint of 25.5″ x 35.4″ x 23.2″ and can easily fit on a desk.
It has a work area of 18.8″ x 33″ x 5.9″, and the effective transmission of the tool is 15.7″ x 23.6″ x 3.9″.
JTF uses a water-cooled spindle motor with a 0–24,000 RPM range.
JTF 6040 CNC offers three spindle options: 2.2kW, 1.5kW, and 800W, and you can choose the one that suits your requirements.
A spindle motor having a higher kW rating gives more output power and allows you to work on harder materials.
It has an aluminum workbed with T-slot rails. It also has an aluminum frame that provides a rigid configuration.
JTF 6040 CNC’s rigid configuration allows it to achieve an accuracy of ≤0.001″ (0.03mm). The maximum feed rate achievable on JTF 6040 is 157.4 ipm (4000 mm/min).
JTF 6040 uses 1605 ball screw drives on each axis, and two-phase 57 stepper motors drive it.
It can work on wood, plastic, PCB, acrylic, rubber, aluminum, copper, stainless steel, etc.
JTF provides Mach 3 control software with the machine, which is compatible with the Windows OS.
You can also use JTF 6040 with other CNC software programs that run on Windows, Mac, or Linux OS.
The controller module is connected to the computer using a USB cable. It has E-stop, power, and spindle control switches.
JTF 6040 comes with a water pump, toolbox, cables, and a CD that includes related software and drivers.
JTF provides a one-year warranty for their 6040 CNC router.
No products found.
2. Genmitsu PROVerXL 4030 to 6060 – Most Versatile CNC Router
| Parameters | Upgraded Genmitsu PROVerXL 4030 |
|---|---|
| Footprint | 40.9″ x 38.9″ x 23.2″ |
| Workpiece thickness | 4.3″ |
| Spindle speed | 12,000 RPM |
| OS compatibility | Windows, Mac, Linux |
| Assembly | ~45 minutes |
| Software Provided | CARVECO CAM (3-month subscription) |
| Warranty | One Year |
A quick overview of the upgraded Genmitsu PROVerXL 6060 CNC router
Genmitsu PROVerXL 4030 from SainSmart is a cheap CNC machine highly popular among hobbyists and DIY enthusiasts.

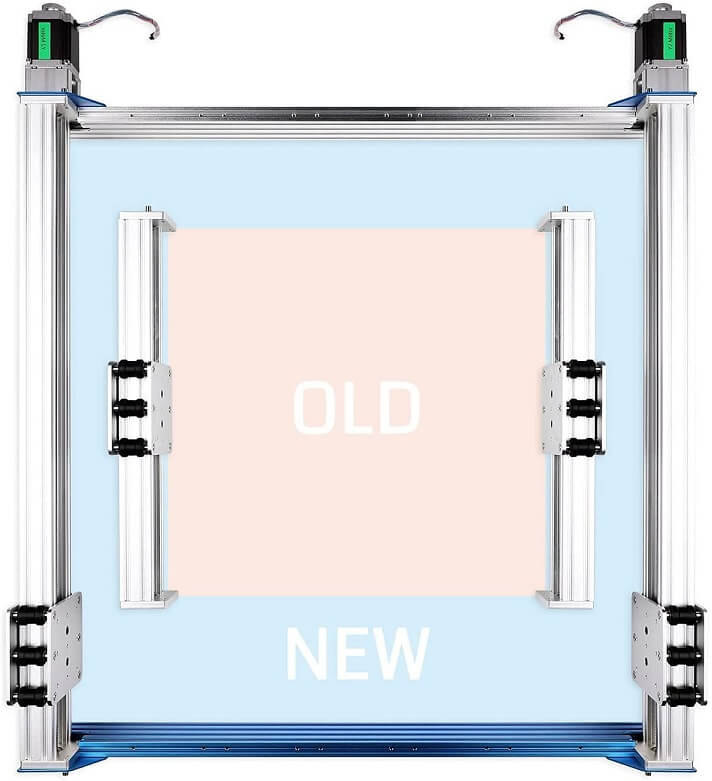

It has an extension kit upgrade that converts the PROVerXL 4030 to a 6060, thereby providing a larger workarea of 23.6″ x 23.6″ x 4.3″ with a footprint of 40.9″ x 38.9″ x 23.2″.
Other than the size, the rest of Genmitsu PROVerXL 6060 (i.e., upgraded PROVerXL 4030) will have the same configuration as PROVerXL 4030.
Genmitsu PROVerXL 6060 is lead screw driven on all three axes by NEMA 23 stepper motors.
It uses a spindle motor having a maximum speed of 12,000 RPM. The spindle uses an ER11 collet to hold tools.
With its 12,000 RPM spindle, PROVerXL 6060 can achieve a maximum feed rate of 78.74 ipm (2000 mm/min).
They also offer a spindle upgrade that can reach up to a speed of 20,000 RPM.
Genmitsu PROVerXL 6060 can cut, drill, and carve various materials like wood, MDF, foams, vinyl, plastics, aluminum, etc.
Interestingly, Genmitsu PROVerXL 6060 can also be mounted with a laser module from Genmitsu.
For controlling the 6060 CNC router, you can either use an offline controller from Genmitsu or a computer.
Genmitsu PROVerXL 6060 works with most CNC software and is compatible with Windows, Mac, and Linux OS.
For ease of shipment, the machine comes in a semi-assembled kit that requires around 45 minutes to assemble and configure with control software.
SainSmart offers a one-year warranty for Genmitsu PROVerXL, and you can contact them through phone or email.
Can work on wood, MDF, foams, vinyl, plastics, acrylic, aluminum, etc.
PROVerXL 4030 comes with a one-year warranty.
Provides a work area of 23.6 x 23.6 inches (600mm x 600mm).
The kit contains aluminum frames, drag chain, wrenches, etc.
3.
| Parameters | DNYSYSJ 6040 CNC Router |
|---|---|
| Footprint | 26.77″ x 34.05″ x 22.4″ |
| Workpiece thickness | 4.7″ |
| Spindle speed | 0 – 24,000 RPM |
| OS compatibility | Windows, Mac, Linux |
| Assembly | ~30 minutes |
| Software Provided | No |
| Warranty | Not mentioned |

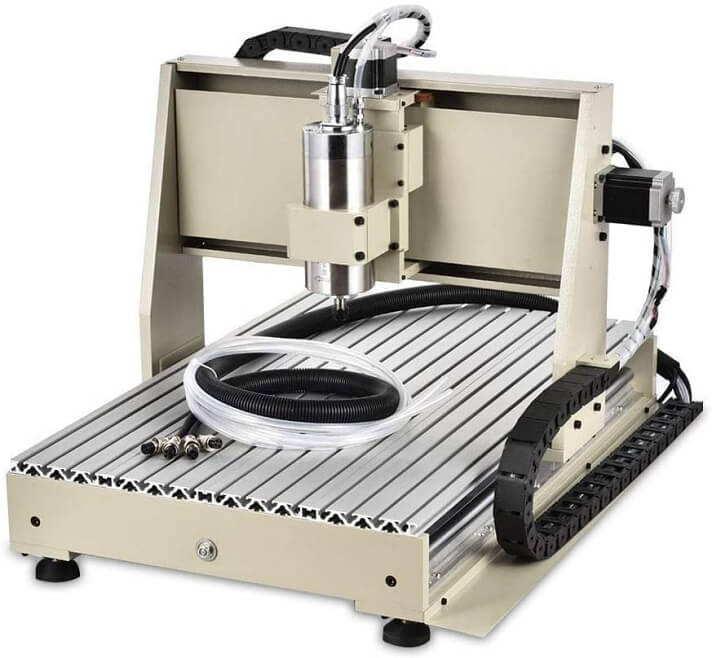

A quick overview of the DNYSYSJ 6040 3-Axis CNC Router
DNYSYSJ 6040 is a 3-axis desktop CNC router. It has a footprint of 26.77″ x 34.05″ x 22.4″ and a work area of 15.35″ x 23.6″ x 4.72″.
It uses a water-cooled spindle motor having a maximum speed of 24,000 RPM. Its maximum working frequency is 60Hz.
DNYSYSJ 6040 CNC router has an aluminum workbed with T-slotted rails for fixturing the workpieces.
For machine transmission, it uses 1605 ball screw drives on the XY axes, and for the Z-axis, it uses a 1204 ball screw drive. Each axis is driven by a dedicated two-phase 57 stepper motor.
The ball screw drives and aluminum frame give a rigid configuration to DNYSYSJ 6040 CNC router, which helps achieve a repeatable accuracy of 0.001″ (0.05mm).
DNYSYSJ 6040 CNC router can work on wood, MDF, PCB, acrylic, rubber, aluminum, PVC, etc.
It can be connected to a computer via USB cable and is compatible with PCs running on Windows, Mac, or Linux OS, depending on the control software.
The controller module of DNYSYSJ 6040 CNC router comes with hardware switches to control various spindle parameters, along with an E-stop and power switch.
DNYSYSJ 6040 CNC router is shipped as a semi-assembled kit, and you can assemble it in about 30 minutes.
DNYSYSJ has not clearly stated its warranty terms, but the seller is active on Amazon, and you can contact them there.
No products found.
4. TEN-HIGH 6040 CNC Router
| Parameters | TEN-HIGH 6040 CNC Router |
|---|---|
| Footprint | 25.1″ x 31.8″ x 18.8″ |
| Workpiece thickness | 3.9″ |
| Spindle speed | 0 – 24,000 RPM |
| OS compatibility | Windows, Mac, Linux |
| Assembly | ~45 minutes |
| Software Provided | No |
| Warranty | Not mentioned |

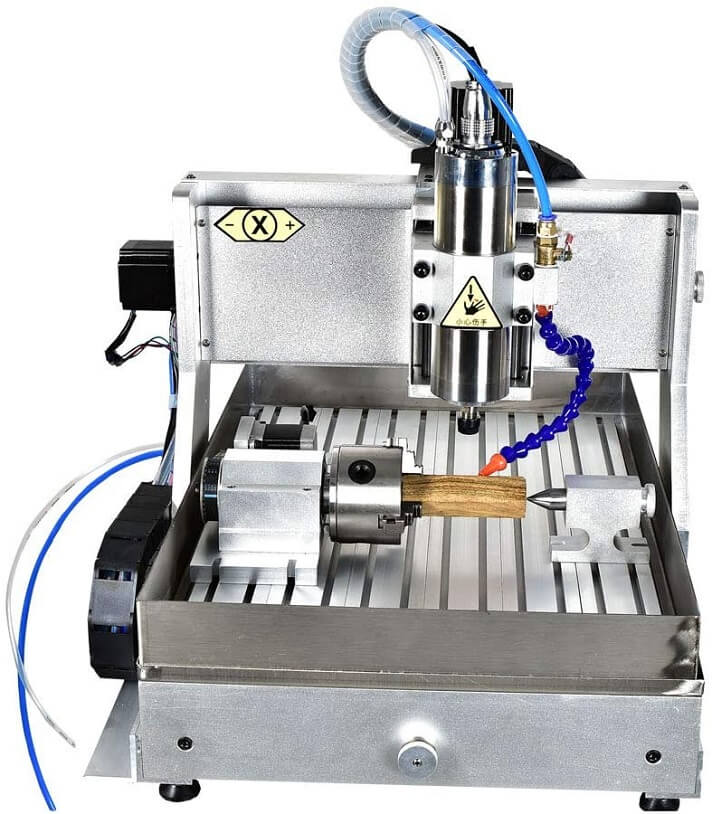

A quick overview of the TEN-HIGH 6040 CNC Router
TEN-HIGH 6040 is a 4-axis CNC Router. It has a footprint of 25.1″ x 31.8″ x 18.8″ and an effective work area of 15.7″ x 23.6″ x 3.1″ (Z-travel).
The machine has an aluminum build, and it comes with a T-slotted aluminum workbed.
TEN-HIGH 6040 uses a 1.5kW water-cooled spindle motor with a 0–24,000 RPM range.
It comes with an ER11 collet that can hold tools having a shank diameter of up to 0.125″ (1/8″).
TEN-HIGH 6040 uses 1605 ball screw drives for transmission on each axis (XYZ), with individual 57 stepper motors for each drive. The 4th axis (i.e., A-axis) uses a belt drive.
The ball screw drives and the machine’s metal build provide a rigid configuration that helps achieve an engraving accuracy of ≤0.001″ (0.03mm) and repeatability of 0.0007″ (0.02mm).
TEN-HIGH 6040 can work on wood, plastic, amber, stone, bamboo, acrylic, PVC, color plate, and soft metals like aluminum.
Its control box has a parallel port, USB port, power button, E-stop switch, and spindle speed control switches.
TEN-HIGH 6040 package doesn’t come with any software, but you can use it with almost any CNC software available on the market.
The shipment package includes the CNC router, control box, tools, cables, water pump, and a 4th axis, including a tailstock, wrench, rotation axis, claws, screws, and nuts.
TEN-HIGH 6040 CNC router is shipped as a semi-assembled kit with all the necessary tools required for its assembly.
The full assembly, including setting up the 4th axis, water pump, and reservoir, will take about 45 minutes.
The manufacturer does not specify warranty information, but you can contact them through their seller’s pages on Amazon.
TEN-HIGH is also popular for its laser machines and has a variety of them in its arsenal.
Can work on wood, MDF, bamboo, PCB, acrylic, stone, rubber, aluminum, PVC, etc.
It uses a water-cooled spindle having a max speed of 24,000 RPM.
5.
| Parameters | TFCFL 6040 CNC Router |
|---|---|
| Footprint | 26.77″ x 34.05″ x 22.4″ |
| Workpiece thickness | 4.7″ |
| Spindle speed | 0 – 24,000 RPM |
| OS compatibility | Windows, Mac, Linux |
| Assembly | ~30 minutes |
| Software Provided | No |
| Warranty | Not mentioned |

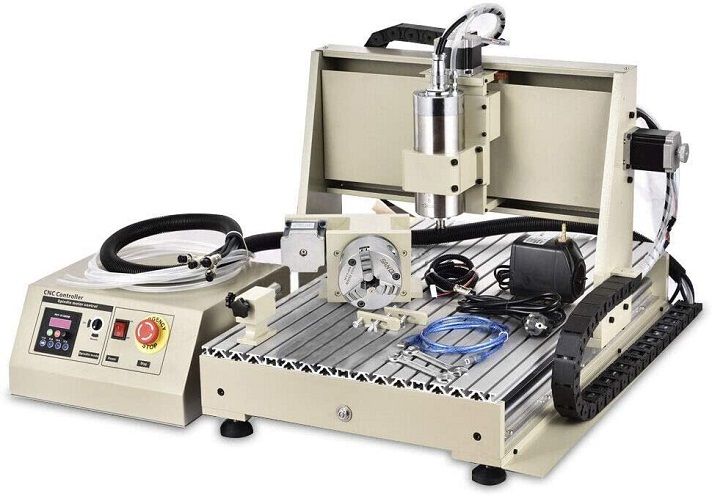

A quick overview of the TFCFL 6040 CNC Router
TFCFL 6040 is a 4-axis desktop CNC router. It has a footprint of 26.77″ x 34.05″ x 22.4″ and a work area of 15.35″ x 23.6″ x 4.72″.
It uses a 1kW water-cooled spindle motor having a maximum speed of 24,000 RPM. Its maximum working frequency is 400Hz.
TFCFL 6040 CNC router has an aluminum workbed with T-slotted rails for fixturing the workpieces.
It uses two-phase 57 stepper motors coupled with 1605 ball screw drives on the XY axes and 1204 ball screw drive on the Z-axis.
The ball screw drives and aluminum frame give the TFCFL 6040 CNC router a rigid configuration.
Moreover, its high-intensity chrome-plated shaft minimizes friction and helps it achieve a repeatable accuracy of 0.001″ (0.05mm).
TFCFL 6040 CNC router can work on wood, MDF, PCB, acrylic, rubber, aluminum, PVC, etc., at a speed range of 1.9 ipm to 59 ipm.
Depending on the software you use, It can be connected to PCs running on Windows, Mac, or Linux OS.
The controller used on TFCFL 6040 CNC router has an E-stop button, power switch, and some control buttons to fiddle with spindle parameters.
TFCFL 6040 CNC router is shipped as a semi-assembled kit, and you can complete the assembly in about 30 minutes.
It also includes some additional accessories such as A-axis, ER11 collet, water pump, cables, and wrenches.
TFCFL has not clearly stated its warranty terms, but the seller is active on Amazon, and you can contact them there.
No products found.
6. Vevor 6040 CNC Router – Best Overall
| Parameters | Vevor 6040 |
|---|---|
| Footprint | 33.1″ x 25.2″ x 18.1″ |
| Workpiece thickness | 3.9″ |
| Spindle speed | 0 – 24,000 RPM |
| OS compatibility | Windows, Mac, Linux |
| Assembly | ~2 hours |
| Software Provided | No (Only drivers) |
| Warranty | 12 months (one year) |

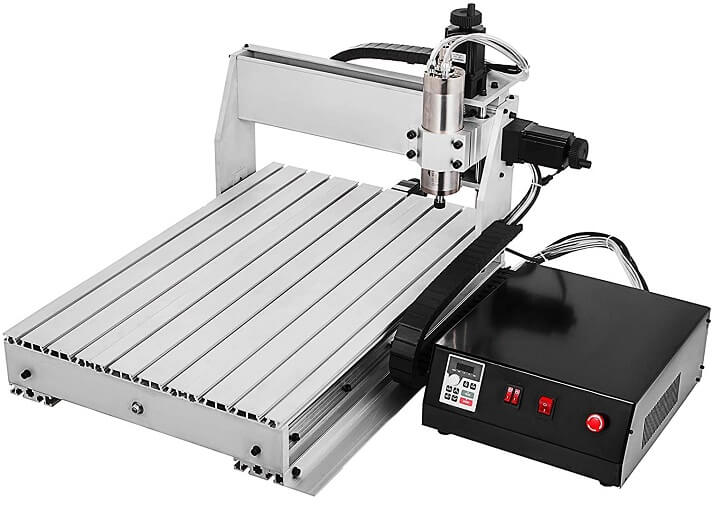

A quick overview of the Vevor 6040 CNC router
Vevor 6040 CNC router is available in 3-axis and 4-axis versions. The 4-axis variant comes with a rotary attachment for working on cylindrical workpieces.
It has a split design, with the controller and the router as separate modules, and can be considered as the best overall 6040 cnc machine.
The router module has a 19″ x 29.5″ footprint, and the controller module has a footprint of 12″ x 13.5″. Hence, the Vevor 6040 CNC router will require a total workshop space of around 33.1″ x 25.2″.
Vevor 6040 CNC can house workpieces of 29.5″ x 18.9″ x 3.9″ in size and provides an effective tool transmission of 15.7″ x 23.6″ x 2.8″ (Z-travel).
It has an 800W water-cooled spindle motor that offers a 0–24,000 RPM range.
The 4-axis variant comes with a water pump included in the kit, but you’ll have to purchase it separately for the 3-axis variant.
Both the variants have a workbed made of aluminum with T-slot rails to fixture the workpiece.
Vevor 6040 uses 1605 ball screw arrangements for transmission along each axis.
High-precision ball screw drives and a sturdy aluminum frame provide the machine with a rigid configuration, which helps in achieving an accuracy of around 0.001″ (0.03mm).
These machines can achieve a maximum carving speed of around 78.74 ipm (2000 mm/min).
Vevor 6040 uses two-phase 57 stepper motors on each axis for transmission.
The transmission parts are placed beneath cover plates to reduce their exposure to dust generated during the engraving, cutting, carving, or milling process.
It can work on wood, MDF, acrylic, plastic, PVC, PCB, and other soft materials.
The CNC router machine alone weighs around 112.4 lbs, and it can sit comfortably on top of a desk.
Vevor 6040 CNC comes with a USB flash drive that has all the necessary drivers preloaded to install on your computer.
The controller module is connected to the computer using a type-B USB cable. It has a built-in power stabilizer, E-stop, and power switch.
It doesn’t come with any CNC software for CAD, CAM, or control operations. But you can use other free or paid CNC software to work with Vevor 6040.
Vevor 6040 is shipped as a kit with detailed assembly instructions and will take around two hours to assemble it.
Vevor offers a one-year warranty for its 6040 CNC router. They offer support via email and phone, and usually respond within 24 hours.
Can work on most soft materials like wood, plastic, PCB, etc.
Vevor 6040 comes with a one-year warranty.
Frequently Asked Questions
What should I look for in a CNC router?
Some of the things you need to look for in a CNC router are its work area, transmission system, build quality, spindle, stepper/servo motor, material capability, dust collection, safety, controller, software support, warranty, and customer support.
Can I make money with CNC routers?
Yes, you can make money with a CNC router. You can make many different CNC projects with a CNC router that easily sells.
What are the best budget CNC routers?
Some of the best budget CNC routers are Comgrow ROBO CNC, Sainsmart Genmitsu 3018 PRO, Maslow CNC Router Kit, BobsCNC Evolution 3, and Ooznest WorkBee Z1+.
