Best Desktop Laser Engravers of 2022 (All Prices)

Best Desktop Laser Engravers of 2022 (All Prices)

Best Desktop Laser Engravers of 2022 (All Prices)

A great desktop laser engraver can let you engrave different materials with great finishing while being portable enough to move it around.

This article lists and reviews the best desktop laser engravers you can get in 2022.

MellowPine is reader-supported. When you buy through links on my site, I may earn an affiliate commission at no extra cost to you.

Best Desktop Laser Engravers of 2022

ProductLaser TypeOutput PowerPrice
1xTool D1 ProDiode20WCheck
2Atomstack X7 ProDiode10WAmazon
3Comgrow Z1Diode5W / 10WCheck
4FSL Muse CoreCO240W / 45W (optional)Check
5Flux BeamoCO230WCheck
6Glowforge BasicCO240WCheck
7Snapmaker 2.0Diode1.6W / 10W(add-on)Check

Best desktop laser engravers in 2022

1. xTool D1 Pro (20W) - Best Value

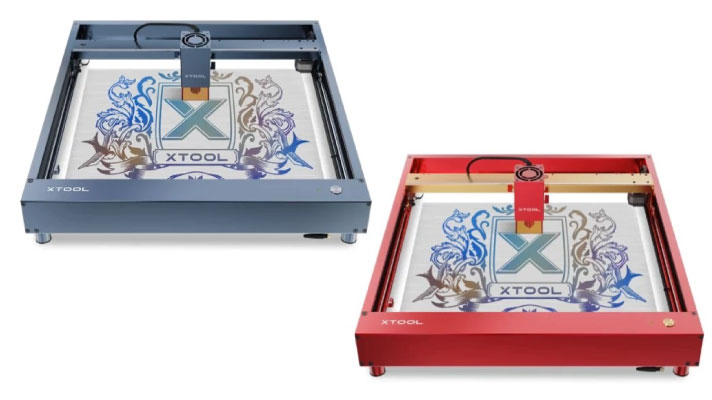

Xtool D1 Pro
Xtool D1 Pro laser engraver
D1 Pro 20W
Laser Power20W
Laser Spot0.08 x 0.1mm
Laser wavelength450nm
Engravable area16.9" x 15.3" (430 x 390 mm)
Weight11 lbs
Focusing TypeFixed focus
Warranty12 months

A quick overview of Xtool D1 Pro laser engraver

The xTool D1 Pro is the latest launch from Xtool. It is an upgraded version of their previous model, xTool D1.

Comparatively, D1 Pro uses a more powerful laser module, fast transmission, redefined focus adjustment, color engraving capability, and its all-metal build gives it an edge over other laser machines.

D1 Pro 20W model has a 16.9" x 15.3" (430 x 390 mm) work area, and it weighs around 11 lbs. It can safely house up to 2" (50mm) thick workpieces.

With their optional leg risers, you can house thicker materials and work with their rotary module (RA2 Pro).

xTool offers D1 Pro with 5W, 10W, and 20W output power options, 20W being the most powerful option.

With the 20W module, you can engrave most materials, including stainless steel, stone, and glass.

It combines the laser beams of four 5W diode lasers to give out a 20W laser output.

20W laser module of xtool D1 Pro
20W laser module of xTool D1 Pro (Source: xTool)

This powerful laser can cut 0.39" basswood and 0.31" black acrylic in a single pass. The maximum routing speed of D1 Pro is 942 ipm (400mm/s).

It can also engrave colors by oxidizing the stainless steel surfaces. Colors vary depending on the laser settings used.

D1 Pro uses belt drives on the XY axes to transmit the laser head. This, together with sturdy aluminum plates and steel timing pulleys, allows D1 Pro to achieve an engraving or cutting accuracy of 0.004".

It has a 4-way limit switch setup on the XY axis for positioning the laser. These switches are linked to an alarm system that notifies the extreme movement of the laser head along the axes.

D1 Pro will work seamlessly with xTool Creative Space and LightBurn software.

xTool provides a 12-month warranty for the D1 Pro laser engraver. For support, you can contact them via email.

I tested and reviewed X7 in the xTool D1 Pro Review Article and the following video.

YouTube video

Subscribe to Mellowpine Lasers on YouTube for Laser tutorials and expert information- "Subscribe to Mellowpine Lasers YouTube Channel".

2. Atomstack X7 Pro - Best in Offline Control

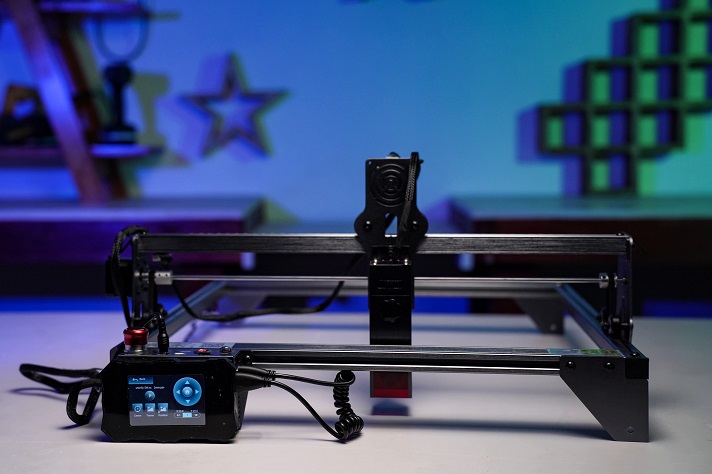

Atomstack X7
Atomstack X7 Pro
Atomstack X7 Pro
Laser Power10W
Laser Spot0.06 x 0.06mm
Laser wavelength445 ± 5nm
Engravable area16.1" x 15.74"
Footprint22.44" x 23.62"
Weight9.5 lbs.
Focusing TypeFixed focus
Warranty1-year

A quick overview of Atomstack X7 Pro

Atomstack X7 Pro is a good choice for engraving jobs. It's powered by a 10W diode laser.

X7 Pro has an effective engraving area of 16.14" x 15.75" (410 mm x 400 mm) and its footprint measures 22.44" x 23.62" (570 mm x 600 mm).

Atomstack recently released a new model, X20 Pro. Its laser head is powered by a 20W laser module, which is double the power of the X7 Pro.

Another difference is that the X20 Pro has a 0.08 x 0.1mm laser spot while the X7 Pro has a smaller laser spot size of 0.06 x 0.06mm.

Note that with a high-powered laser you can perform the same job at a faster speed.

Also, with a smaller laser spot, you can engrave at a high pixel density. This allows you to engrave high-resolution images on the workpiece.

Looking at the transmission, X7 Pro is belt driven by NEMA 17 stepper motors along the XY axes. These axes have limit switches integrated into them.

Along the Z-axis, you have to manually adjust the laser module to set the focus as it uses a fixed focus laser.

The tight transmission, together with its rigid extruded aluminum profiles, provides Atomstack X7 Pro with an engraving accuracy of 0.01mm.

X7 Pro comes with a touch screen controller, allowing offline operation without connecting to a computer. It can also work with LaserGRBL and LightBurn software.

Atomstack also has many upgrades like a universal rotary roller, support columns, honeycomb worktable, air assist pump, extension kit, etc., that you can integrate on X7 Pro.

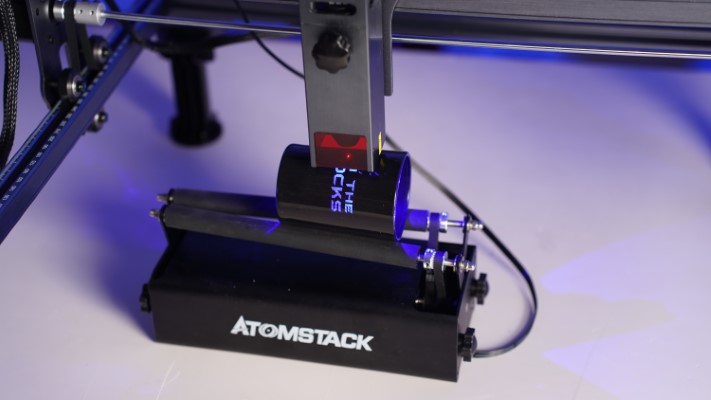

Atomstack R3 rottary roller on Atomstack X7
Atomstack R3 rottary roller on Atomstack X7 Pro

Atomstack ships X7 Pro as a DIY kit that needs to be assembled by the user. You can assemble everything in about 20 minutes.

They have a large and active community that you can connect with. They also offer good customer support. For queries, you can contact them via email or WhatsApp.

If your engraving application requires a low-powered laser, their basic model X7 has a 5W module that will do the job.

I tested and reviewed X7 in the Atomstack X7 review article and the following video.

YouTube video

Subscribe to Mellowpine Lasers on YouTube for Laser tutorials and expert information- "Subscribe to Mellowpine Lasers YouTube Channel".

Sale
ATOMSTACK X7 Laser Engraver
5W Diode laser engraver.
Its laser spot is smaller than ordinary lasers.
Comes with a one-year manufacturer's warranty.
ATOMSTACK X7 Pro Laser Engraver
10W Diode laser engraver.
Its laser spot is smaller than X7.
Comes with a one-year manufacturer's warranty.

3. Comgrow COMGO Z1 - Most Affordable

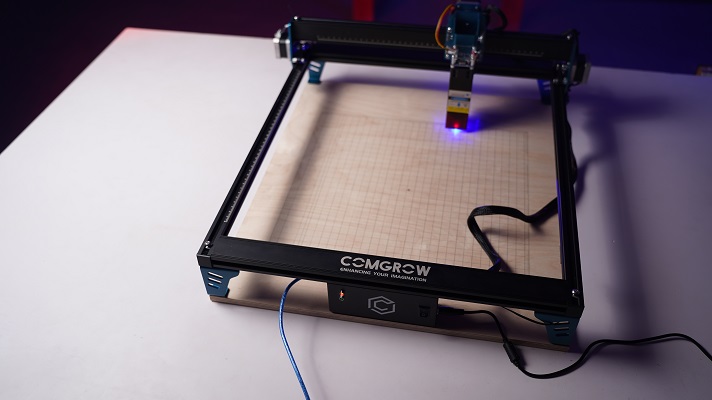

Comgrow Z1
Comgrow COMGO Z1 laser engraver
Comgrow COMGO Z1
Laser Power5W / 10W
Laser Spot0.08 x 0.08 mm
Laser wavelength445 nm
Engravable area15.75" x 15.75"
Footprint22.64" x 22.65" x 8.07"
Weight11 lbs
Focusing TypeFixed focus
Warranty1-year

A quick overview of Comgrow COMGO Z1

Comgrow COMGO Z1 is one of the best, most affordable desktop laser engravers you can get.

It comes with two laser options. You can get COMGO Z1 with a 5W or 10W diode laser operating at a wavelength of 445nm.

Atomstack uses FAC (Fast Axis Collimating) lenses on X7's laser module, which allows it to obtain a small laser focus spot of 0.08 x 0.08 mm.

When comparing Z1 with Atomstack X7, having a similar laser spot, X7 costs $250 more than COMGO Z1.

FAC lens
FAC lens

The machine has a work area of 15.75" x 15.75" x 4.13" (400 x 400 x 105 mm) and its footprint measures 22.64" x 22.65" x 8.07" (575 x 575 x 205 mm).

COMGO Z1 has aluminum construction, and the machine weighs around 11 lbs.

It ships as a semi-assembled kit, and you can assemble everything in about 15 minutes.

The transmission is belt-driven along the XY axes with the help of three NEMA 17 stepper motors.

While two motors are used to drive the Y-axis, the X-axis is driven by one.

The Z-axis is not motorized, and you'll have to adjust the laser focus manually. It has a Z-travel of 4.13".

COMGO Z1 has limit switches on the XY axes, and you can use them to home the machine.

Z1 connects with LaserGRBL and LightBurn software. LaserGRBL only runs on Windows OS, whereas LightBurn is compatible with Windows, Mac, or Linux OS.

Comgrow offers additional accessories like the enclosure, honeycomb laser bed, rotary axis, etc., that you can use to upgrade the COMGO Z1 laser engraver.

They provide good support to their customers and offer a 1-year warranty. You can reach out to Comgrow through email or the contact us form on their website.

I have tested and reviewed the Comgrow COMGO X7 in detail. You can refer to the Comgrow Z1 laser engraver review article or watch the following video to check the test results.

YouTube video

4. FSL Muse Core

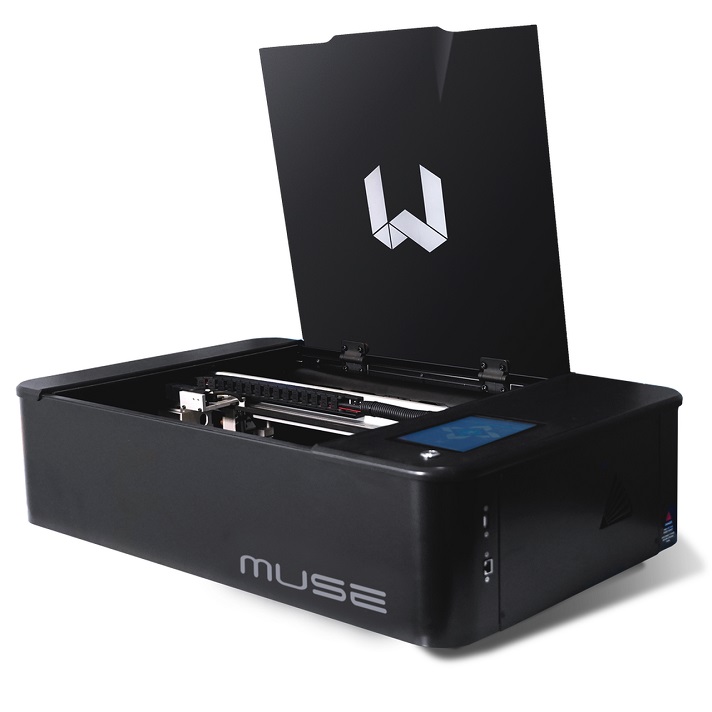

FSL Muse Core
FSL Muse Core (Source: Full Spectrum Laser)
FSL Muse Core
Laser Power40W or 45W (optional)
Laser wavelength10,640nm
Engravable area20" x 12"
Footprint32.3" x 20.3" x 8.5"
Weight54 lbs
Focusing TypeAutofocus
Warranty1-year

A quick overview of FSL Muse Core

FSL Muse Core is a class 3 CO2 desktop laser machine from Full Spectrum Laser (FSL). It can engrave images at a maximum resolution of 1,000 DPI.

In addition to engraving, it can also cut up to 1/4" thick materials like wood, acrylic, leather, rubber, etc.

FSL allows you to customize Muse Core with a 40W or 45W laser module, air assist, rotary module, water pump, powerful lenses, etc.

Muse Core has an enclosed setup, its work area measures 20" x 12" x 2.5" and its footprint is 32.3" x 20.3" x 8.5".

On the top frame of Muse, it has a 7" touch control screen. You can use it to set laser parameters, select and run jobs, etc.

FSL has its own in-house software RetinaEngrave v3.0 which controls Muse Core. It is a browser-based software that can run offline on Windows, Mac, and Linux operating systems.

The software is locally hosted on the laser machine. You can interface it to the computer through WiFi or ethernet.

FSL provides good customer support to its users. They provide Muse Core with a 1-year warranty. You can even upgrade the warranty for one more year.

For queries, you can contact them through phone, email, or by filling out the message us form. FSL is headquartered in Las Vegas, USA.

5. Flux beamo

Flux beamo
Flux beamo (Source: flux3dp)
Flux beamo
Laser Power30W
Laser wavelength10,640nm
Engravable area11.8" x 8.2"
Footprint24.21" x 17.52"
Weight48.5 lbs
Focusing TypeAutofocus
Warranty1-year

A quick overview of Flux beamo

Flux beamo is a 30W CO2 desktop laser machine that can cut and engrave various materials.

It can engrave on wood, acrylic, rubber, leather, glass, cement, stones, cardboard, fabric, stainless steel, and anodized metals. Its engraving resolution is 1,000 DPI.

The footprint measures 24.21" x 17.52" and it has a work area of 11.8" x 8.2". It can safely house materials of up to 1.7" thickness.

For transmission, Flux beamo uses belt drives along XY axes. The Z-axis is not motorized, so you'll have to adjust the laser focus manually.

Flux beamo works with their software Beam Studio. It is free-to-use software compatible with systems running on Windows, Mac, and Linux OS.

The software allows you to make designs with basic shapes. You can also run jobs by importing files like DXF, SVG, PNG, and JPG.

Flux offers optional accessories like a rotary module, autofocus module, etc., for beamo that you can use to upgrade the machine.

They offer a 1-year warranty for beamo, but the CO2 laser module on the machine only gets a 3-month warranty.

For queries, you can reach out to them by raising a support ticket on their website. Most solutions are available on their support website.

6. Glowforge Basic

Glowforge Laser cutter and engraver
Glowforge Laser cutter and engraver
Glowforge Basic
Laser Power40W or 45W
Laser Spot0.008" (0.2 mm)
Laser wavelength10,600 nm
Engravable area20" x 18″
Footprint38″ x 20.75″ x 8.25″
Weight55 lbs
Focusing TypeAutofocus
Warranty6-months

A quick overview of Glowforge Basic

Glowforge Basic is the most affordable laser machine from Glowforge.

The Basic model is an excellent choice for engraving and light cutting jobs. It is powered by a 40W CO2 laser tube.

Glowforge can engrave on most materials, including glass, titanium, anodized aluminum, ceramic, and stones like marble, granite, etc.

The machine comes with an inbuilt air assist system that prevents the focus lens from fume clouding during the engraving process.

It has an engravable area of 20" x 18″ and can safely house up to 2" thick workpieces in its work area.

The footprint measures 38″ x 20.75″ x 8.25″, and the machine weigh about 55 lbs.

Glowforge Basic has a built-in camera that faces its work area. It allows you to track the workpiece and use it as a reference to place designs within the software.

The machine works with the Glowforge Print software. It has free and paid versions available.

Glowforge provides a 6-month warranty for their Basic model. For support, you can contact them via phone or email.

If the primary requirement of your application involves laser cutting of different materials, you can check out Glowforge Pro which offers a comparatively higher laser power output.

7. Snapmaker 2.0 - Best 3-in-1 Laser Engraver

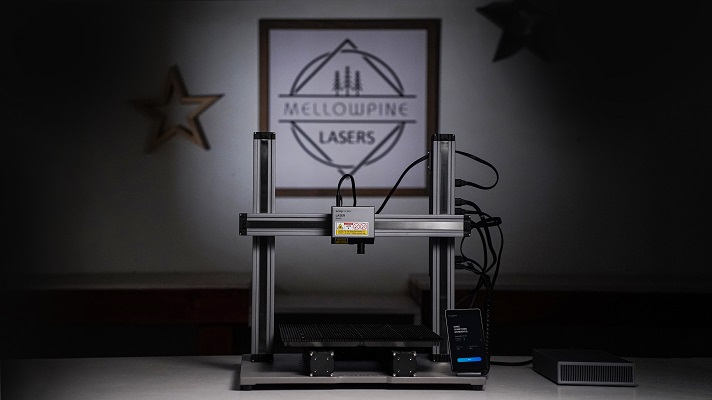

Snapmaker 2.0
Snapmaker 2.0
Snapmaker 2.0
Laser power1.6W, 10W (Add-on)
Laser wavelength450 nm
Laser spot0.05 mm × 0.2 mm on 10W
Engravable area12.59" x 13.77" x 10.82" (max)
Footprint19.48" x 19.92" x 22.83" (max)
Focusing typeAutofocus
Warranty1-year

A quick overview of Snapmaker 2.0

Snapmaker 2.0 is a 3-in-1 CNC machine capable of performing laser engraving, CNC carving, and 3D printing operations.

It is an upgraded version of Snapmaker Orginal, which is also a 3-in-1 machine.

Snapmaker 2.0 is available in three different sizes, each offering a different work area. Following is the work area of the laser module.

A150A250A350
6.29" x 6.29" x 5.7"
(160 × 160 × 145 mm)
9.05" x 9.84" x 9.25"
(230 × 250 × 235 mm)
12.59" x 13.77" x 10.82"
(320 × 350 × 275 mm)

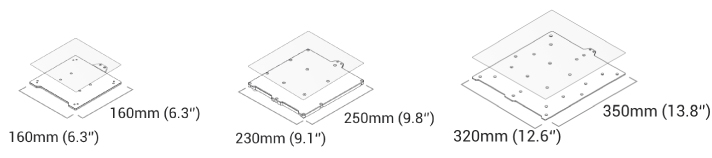

Laser Engraving work area comparison of Snapmaker 2.0 models
Laser engraving work area of Snapmaker 2.0
Laser engraving work area of Snapmaker 2.0

Snapmaker also offers 2.0 in three models A, AT, and F. Models A and AT comes with a laser module, but F only comes with a 3D printing module.

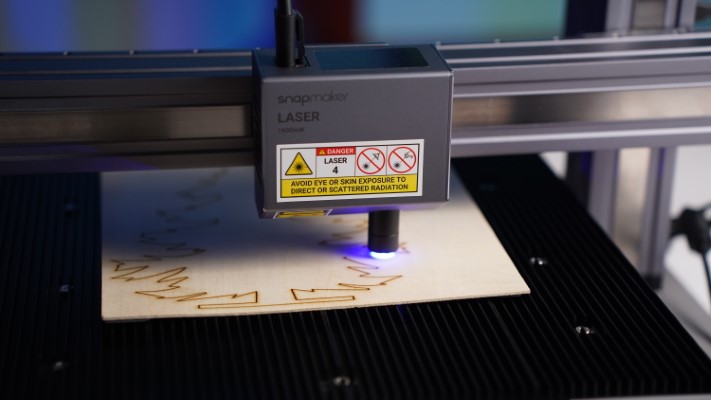

laser cutting on snapmaker 2.0
Laser cutting on Snapmaker 2.0

The laser module that comes with Snapmaker 2.0 has an output power of 1.6W (1600mW).

It is capable of engraving soft materials like leatherplasticfabric, opaque acrylicpaper, and wood.

Snapmaker also provides an optional 10W laser module which can enhance its ability to cut and engrave different materials.

It has an upgraded camera capture feature, and its Fast-axis Collimating (FAC) lenses provide a laser spot of 0.05 mm × 0.2 mm.

Snapmaker has a touch screen controller using which you can operate the machine offline. You can also link the controller to Luban software to work online.

3-in-1 machines like Snapmaker 2.0 are a great option for hobbyists. It eliminates the need for three separate machines.

It has many add-on accessories like a rotary module, enclosure, air purifier, E-stop switch, etc., which can be used to upgrade the Snapmaker.

Snapmaker 2.0 comes in parts, and you have to assemble them. The assembly process can take anywhere between 3 to 4 hours.

The machine is covered under a 1-year warranty. For support, you can contact them via phone or email.

I have tested and reviewed Snapmaker 2.0 in detail. You can refer to the Snapmaker 2.0 Review article or watch the following video to check the test results.

YouTube video

Things to look for in a laser engraving machine

When purchasing a laser engraving machine you have to consider the following factors.

Work Material

The laser type, its power, and the required work area depend upon the material you plan to work with.

Generally, working with plywood sheets or other sheet form materials requires a large work area, whereas working with thick workpieces requires enough Z-travel.

Moreover, as the laser power increases, the ability to perform deeper engravings with a quick cycle time also increases.

Therefore, it is recommended to identify your requirements before selecting the laser engraver for your application.

Most materials can be engraved using a high-powered diode laser engraver, but if you want to engrave intricate patterns like bar codes, part numbers, etc., on metals, a fiber laser machine will be your best bet.

Accuracy and Repeatability

The accuracy and repeatability of a laser engraver will depend on the laser spot, transmission, and the rigidity of the frame that supports the machine's components.

Accessories

Different laser accessories, like rotary axis, air assist, work bed, enclosure, etc., can greatly influence the workflow and the output.

For example, if you are working on materials that produce smoke, it's important to have an air assist and an exhaust set up as they help minimize burns and facilitate easy disposal of smoke away from the workpiece.

Upgrades

If you are planning to get a laser engraver, check if the manufacturer has the upgrades that you might need in the future.

For example, you might only want a laser engraver now, but in the future, you may also want to cut the workpieces with the same machine.

In such a situation, if the manufacturer has a powerful laser available, you can effortlessly upgrade your machine.

Support

The support you get from the manufacturer and the community surrounding your machine is also an important factor.

With good support, you can easily troubleshoot errors without spending too much time finding the solutions all by yourself.

Price

Price has a larger say in the features you get with your machine. Note that a higher price doesn't always mean a better machine.

While buying a laser engraver, check similarly priced machines from different manufacturers and compare them to know where you are losing the money.

I suggest you get a future-proofed machine, as you can easily upgrade it without looking for a replacement.

Frequently Asked Questions

Is a laser cutter the same as a laser engraver?

Yes, a laser cutter is the same as a laser engraver. The only difference is that laser cutters have enough power to cut through a material. In contrast, laser engravers generally have a low-powered laser that can only engrave on different workpieces. In common, a laser cutter/engraver uses a high-energy beam of light to vaporize the material from the workpiece.

How much does a laser engraver cost?

A standard laser engraver can cost anywhere around $250 to $5,000. Comparatively, laser engravers with a diode laser cost less than ones with a CO2 or fiber laser module.

Can you use your laser engraver to make money?

Yes, you can use your laser engraver to make money by establishing a laser engraving business and selling creative products that most people are looking for. Festive seasons like Christmas, Halloween, etc., and events like weddings, office parties, etc., are some additional areas you can try.

About John

Hey I'm John. I talk about CNCs and Lasers at Mellowpine. If you have any questions related to CNCs or Lasers, I'd be happy to answer them. Reach me at mail@mellowpine.com

DIY Profile
John

Hey I'm John. I talk about CNCs and Lasers at Mellowpine. If you have any questions related to CNCs or Lasers, I'd be happy to answer them. Reach me at mail@mellowpine.com

Thanks for signing up.
Some error occured. Please try again.

Comments

The comments are closed.
